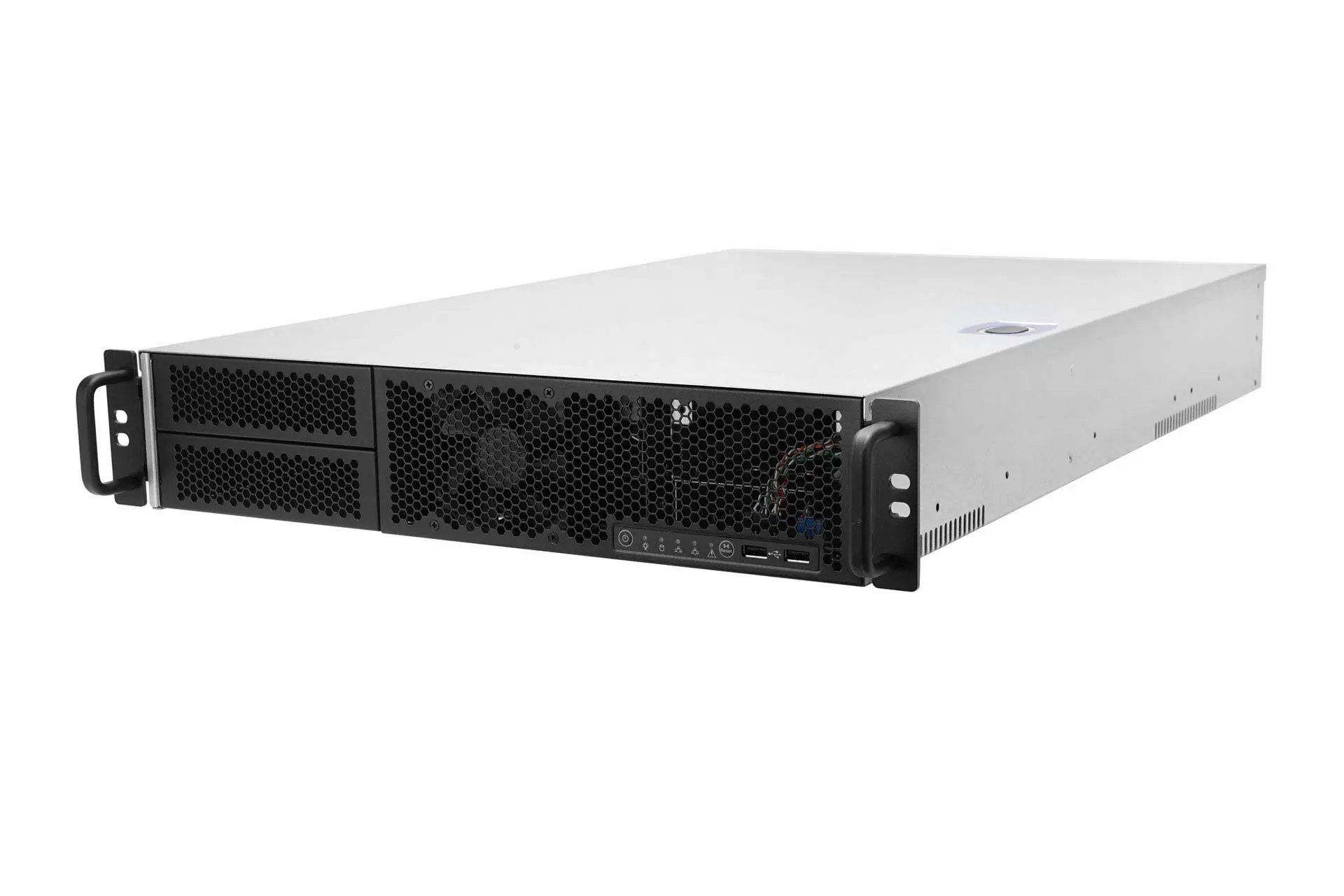

ZOAN ST160-Z3-P15-2U-AS: Best-in-Class 2U Server Performance
The ZOAN ST160-Z3-P15-2U-AS is a 2U server built with the latest Intel® Xeon® E-2300 series processors to deliver outstanding performance.
It features six internal 3.5″ drive bays and an onboard M.2 slot for the operating system disk or a memory cache. For comprehensive IT infrastructure management, this server includes an IPMI module that enables remote BIOS updates, power control, OS installation, and diagnostics, even when the server’s operating system is down or offline.
Key Features & Advantages
- Intel® Xeon® E-Series Processor: Uses the latest Intel Xeon E-2300 series processors for outstanding server performance.
- Optimal Storage: Features 6 internal storage bays and an onboard M.2 slot for the operating system disk or cache.
- Dual Network Connectivity: Equipped with 2 Intel 1G LAN ports for fast and efficient connections.
- Flexible Expansion: Provides 4 PCIe slots for future expansion needs.
Specifications
Form Factor : 2U Rackmount
Processor : 4C/8T Intel® Xeon® E-2324G 3.1GHz 8MB L3 Cache
Chipset : Intel C252
Memory : 4 DIMM Slots (2x 16GB DDR4 ECC installed)
Drive Bay : 6x Internal 3.5″ bays
Installed Storage : 1x 2TB SATA 7200 rpm ES
M.2 Slot : 1x M.2 (22110/2280/2260) supporting PCIe or SATA
RAID : Optional RAID Controller (for SAS drives)
Network : 2x 1G Intel I210 RJ45 ports
Management : Dedicated IPMI LAN
Graphics : Aspeed AST2500 with 256MB VRAM
Expansion Slots : 3x PCIe 3.0 x16, 1x PCIe 3.0 x8
Rear I/O Ports : 4x USB 3.2 Gen 1, 1x VGA, 1x Serial (COM), 1x UID Button/LED
Front I/O Ports : 2x USB Ports
Dimensions : 661 x 432.4 x 88mm
Power Supply : 500 Watt 80+ Gold
