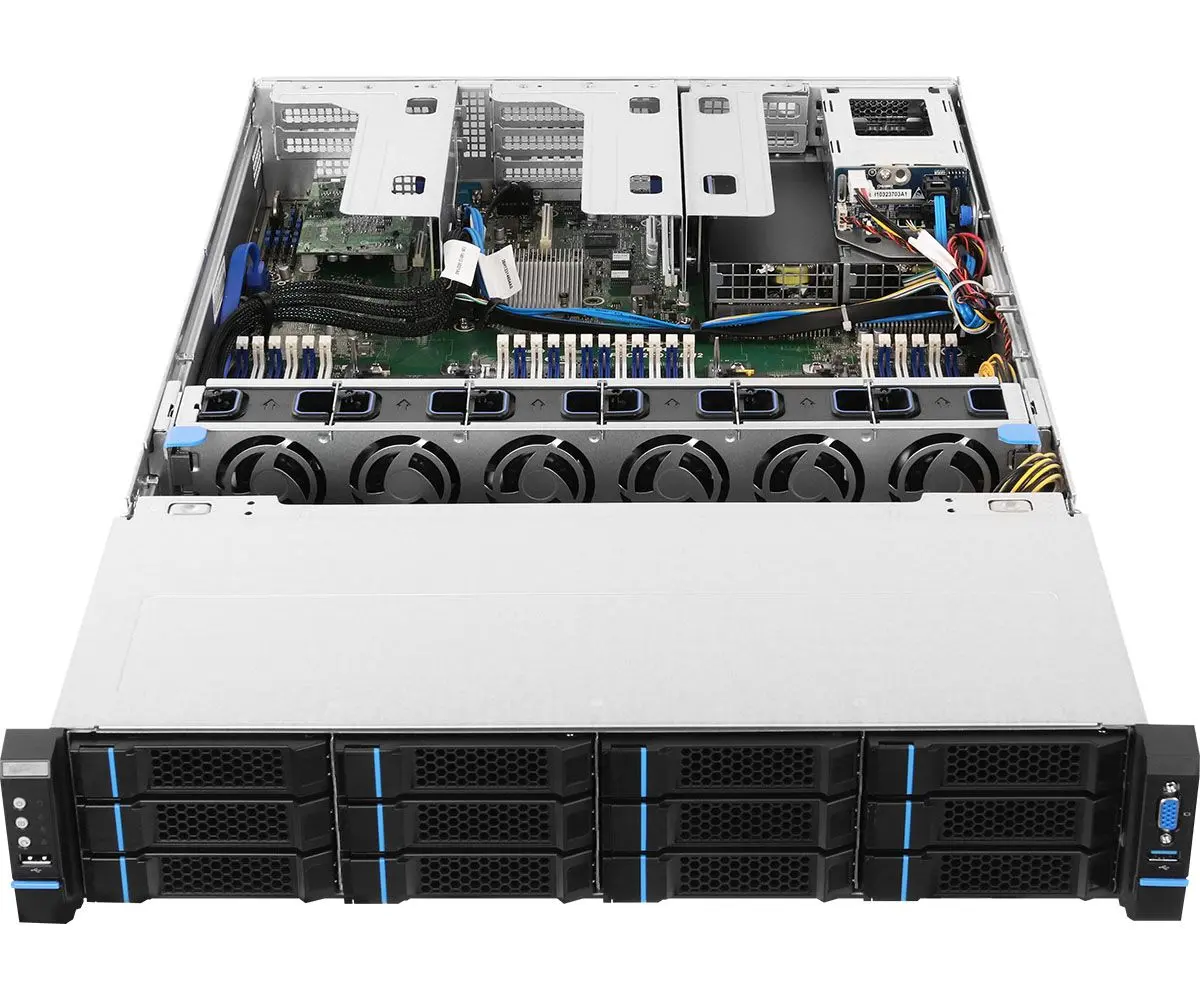

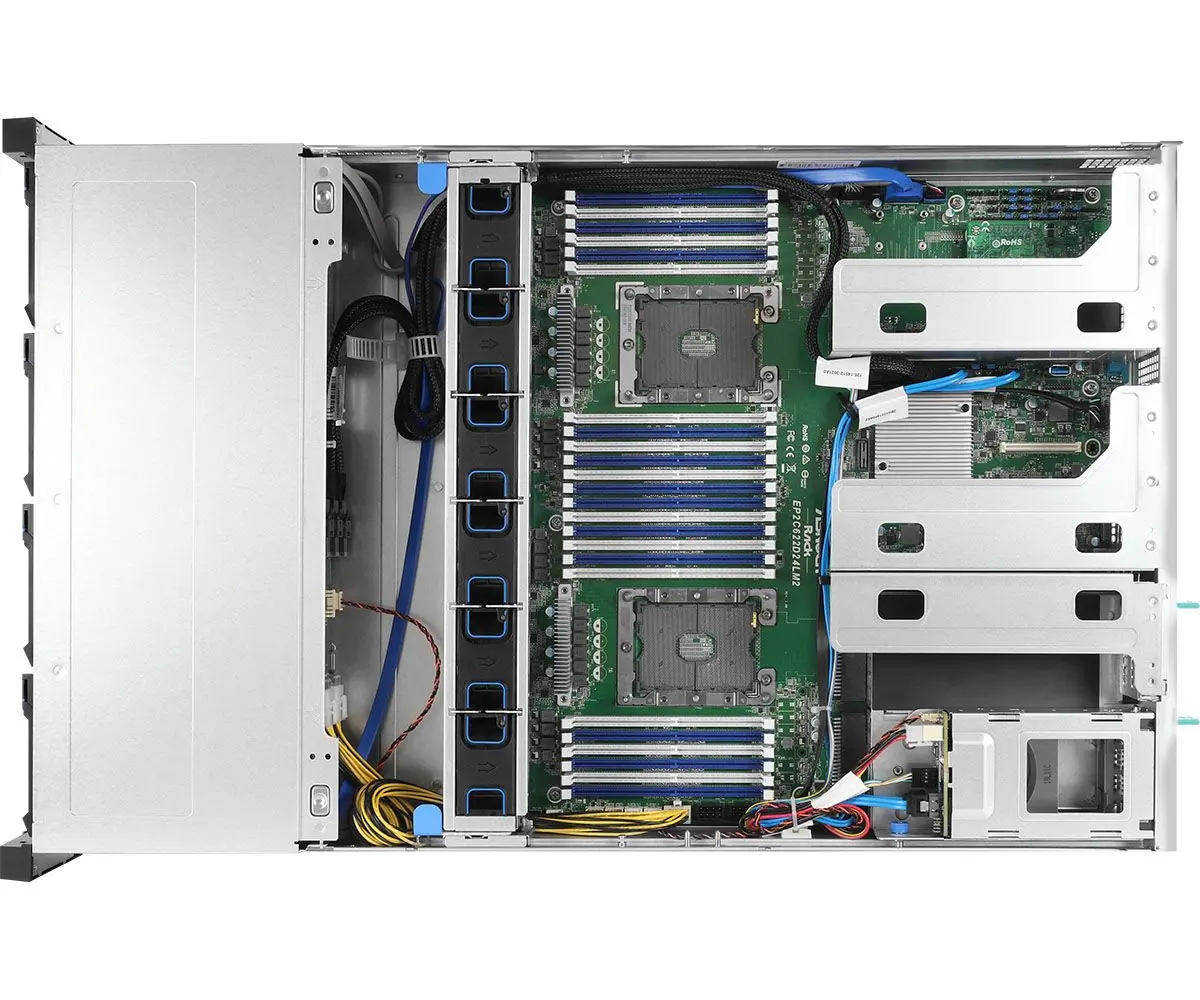

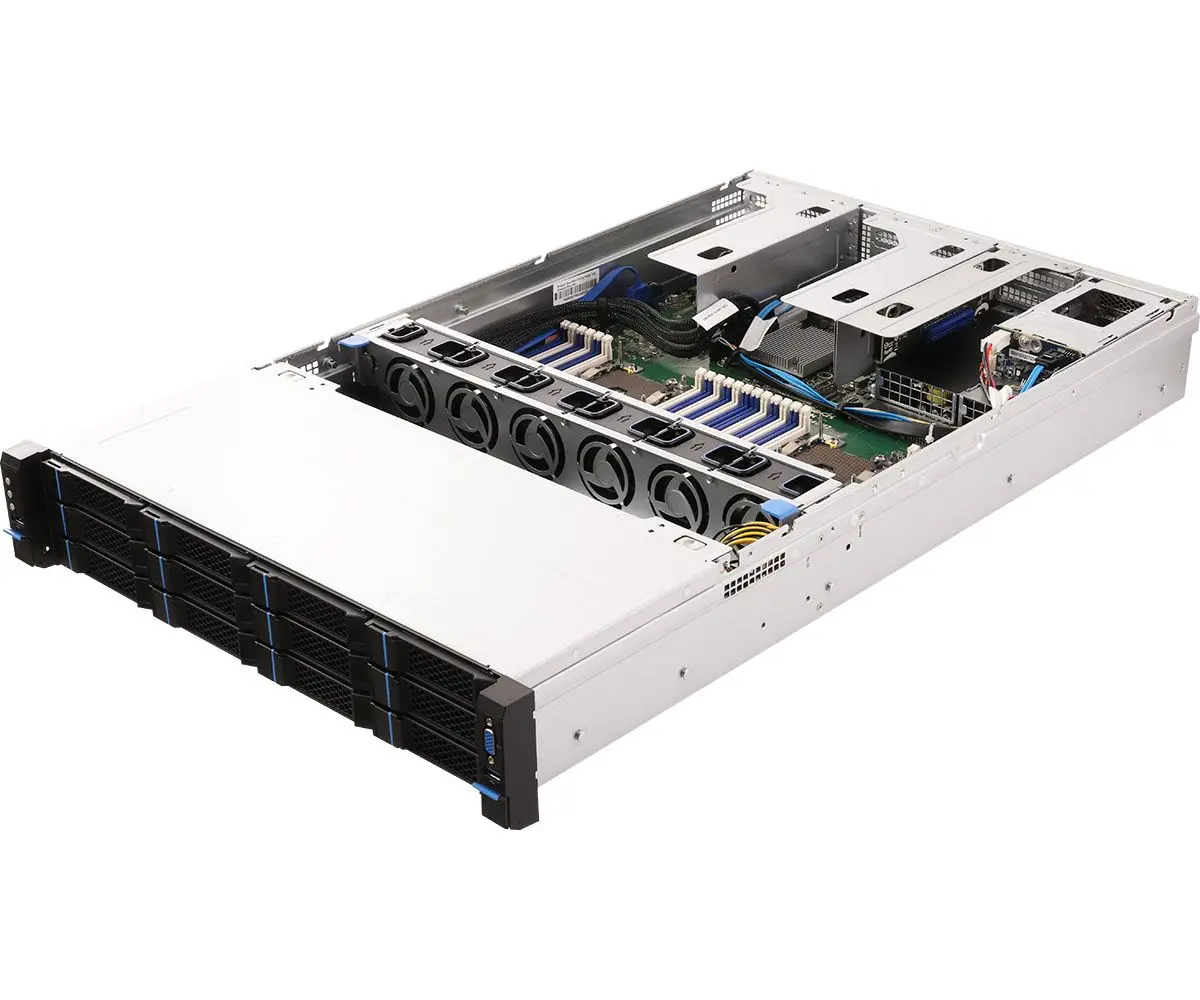

ZOAN ST160-R522-Z2-RS12: Best-in-Class 2U Server Performance
The ZOAN ST160-R522-Z2-RS12 is a 2U server built with the latest 2nd Generation Intel® Xeon® Scalable processors to deliver exceptional performance.
It is designed to provide a comprehensive IT infrastructure management solution through its IPMI 2.0 remote management module.
With a versatile storage interface that includes 12 hot-swap bays in the front, 2 hot-swap bays in the rear, and an internal M.2 slot, this server offers the flexibility and optimal performance needed for a wide range of data center requirements.
Key Features & Advantages
- Dual Processors: Uses dual-socket 2nd Generation Intel Xeon Scalable processors for high-performance computing.
- High-Capacity Storage: Equipped with 12 hot-swap 3.5″/2.5″ bays in the front and 2 hot-swap 2.5″ bays in the rear.
- Comprehensive Remote Management: Integrated with an IPMI 2.0 module for remote server management, allowing for BIOS updates, power control, and diagnostics even when the server is offline.
- Massive Memory Capacity: Provides 24 DIMM memory slots to support the most intensive workloads.
Specifications
Form Factor : 2U Rackmount
Processor System : Dual Socket P (LGA3647) for 2nd Gen Intel® Xeon® Scalable
Chipset : Intel C622
Memory : 24 DIMM slots, DDR4 LR/R DIMM type
Drive Bay : Front: 12x Hotswap 3.5″/2.5″ bays (SATA/SAS), Rear: 2x 2.5″ bays
RAID : Optional RAID controller
Network : 2x Intel 1 GbE Base-T Ports, 1x Dedicated IPMI LAN Port
Graphics : Aspeed AST2500 with 16MB VRAM
Expansion Slots : 2x PCIe 3.0 x16, 1x PCIe 3.0 x8
Rear I/O Ports : 2x USB 3.2 Type-A, 1x VGA (DB15), 1x Serial (DB9), 1x RJ45 IPMI
Dimensions : 87 mm x 438 mm x 735 mm
Power Supply : Redundant (1+1) 1600 Watt
