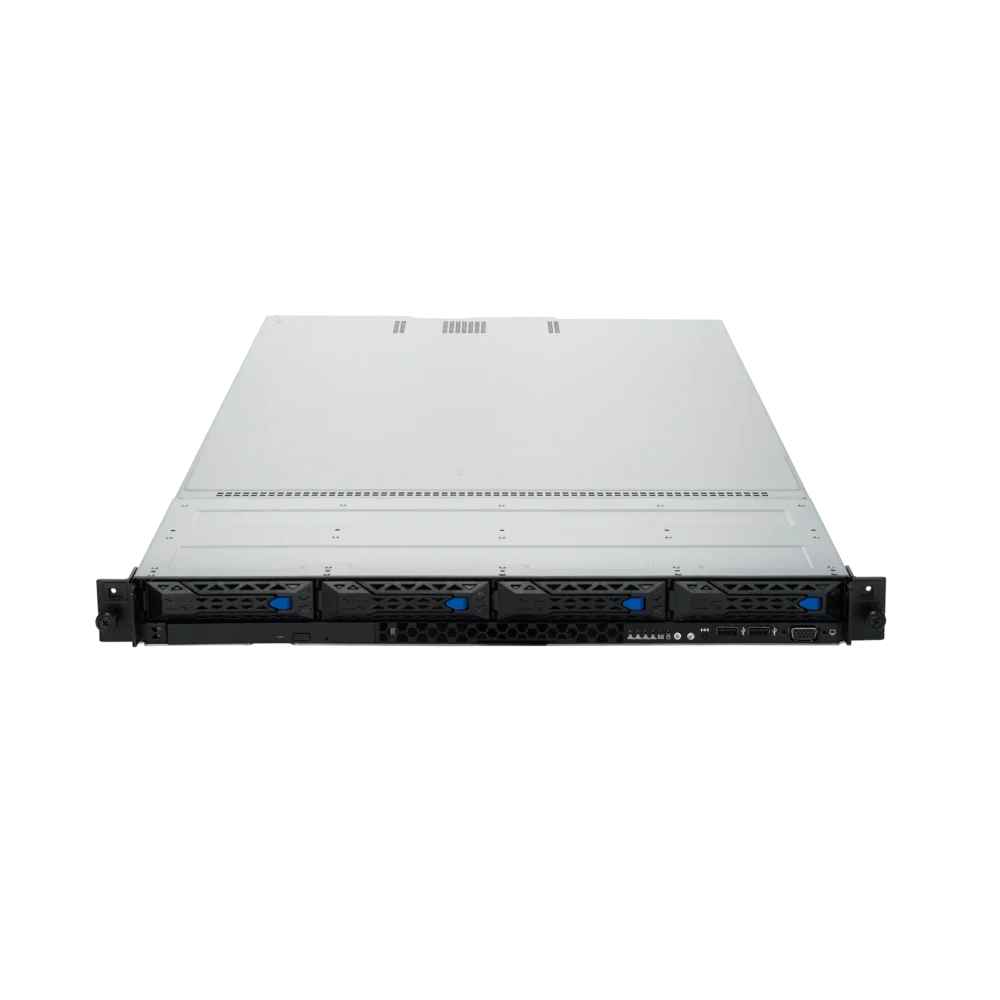

ZOAN ST160-R700-Z3-RS4U: High-Performance, Scalable 1U Server
The ZOAN ST160-R700-Z3-RS4U is powered by a 3rd Generation Intel® Xeon® Scalable processor that supports up to 32 memory module slots, a single dual-slot GPU, 4 NVMe drives, dual M.2, and server remote management.
The latest Intel Xeon Scalable processors offer up to 1.42x more cores per CPU and a 1.52x increase in computing performance. This server also comes with advanced security features like PFR FPGA as a Platform Root-of-Trust solution for firmware resilience and a Trusted Platform Module 2.0 (TPM 2.0) to secure hardware with cryptographic keys.
Key Features & Advantages
- 3rd Gen Processor: Uses dual-socket 3rd Generation Intel Xeon processors with CPU TDP support of up to 270W.
- GPU Support for AI: Supports a single dual-slot GPU like the NVIDIA A100, suitable for AI workloads.
- PCIe 4.0 Expansion: Delivers a bandwidth of 16 GT/s, double that of PCIe 3.0, and features 3+1 PCIe® 4.0 slots.
- High Memory Capacity: Supports up to 32 DIMM slots.
Specifications
Form Factor : 1U Rackmount
Processor : Intel Xeon Silver 4310 (12 Cores/24 Threads, 2.1 GHz/3.3 GHz Turbo), 1 of 2 sockets installed
Memory : 32 DIMM slots (1x 16GB DDR4 RDIMM installed)

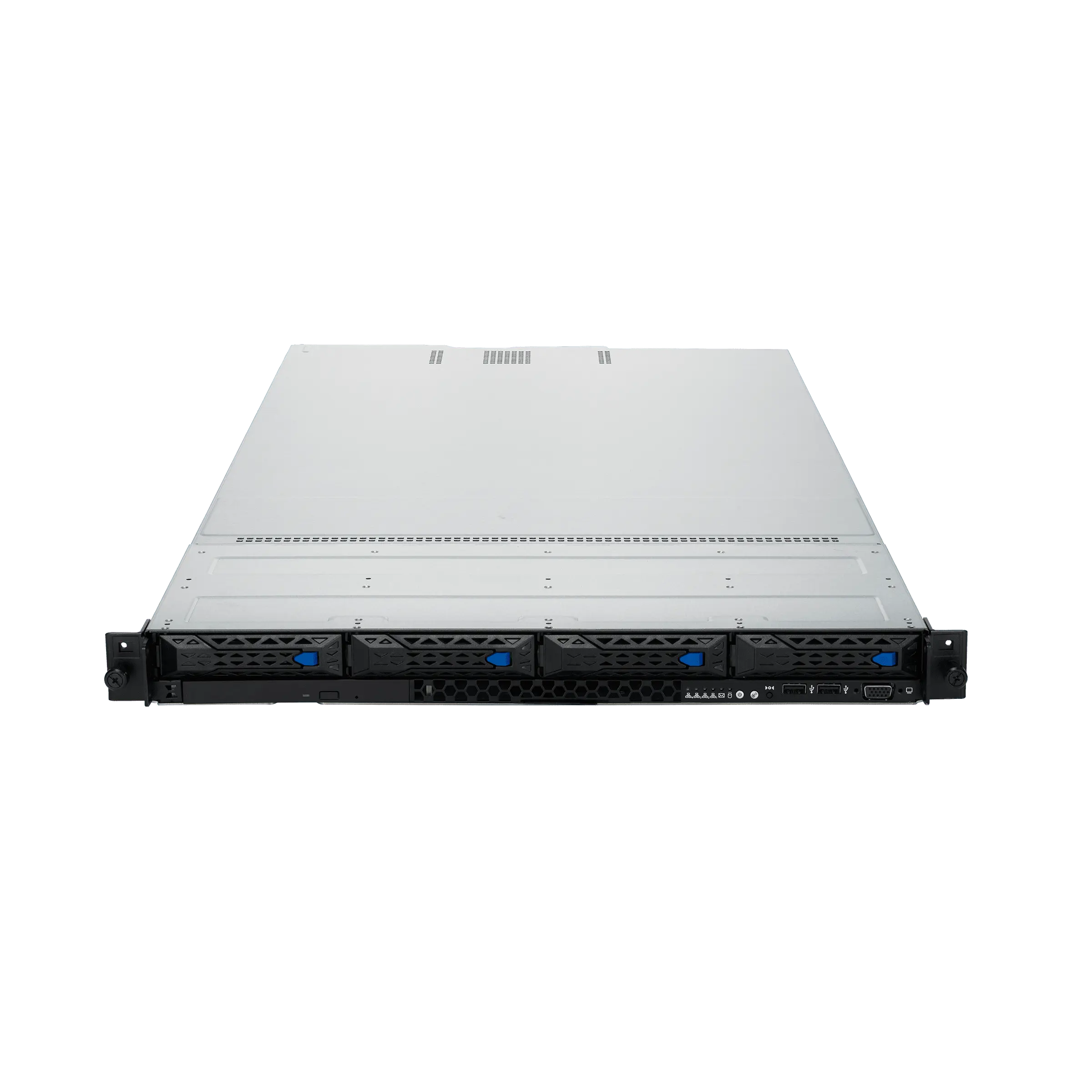

Drive Bay : 4x Hotswap 3.5″/2.5″ bays
Installed Storage : 1x 480 GB SATA SSD Enterprise, 1x 1.2TB SAS 10K rpm
RAID Controller : PIKE II 3008 supporting RAID 0, 1, 10
Network : Quad-port Intel I350-AM4 1 GbE Base-T
Management : Dedicated IPMI LAN port
Accelerator/GPU : 1x NVIDIA T4 16GB
Expansion Slots : 1x PCIe 4.0 x16 FHFL (CPU1), 1x PCIe 4.0 x16 FHFL or OCP3.0 (CPU2), 1x PCIe 4.0 x16 LP FHFL (CPU2)

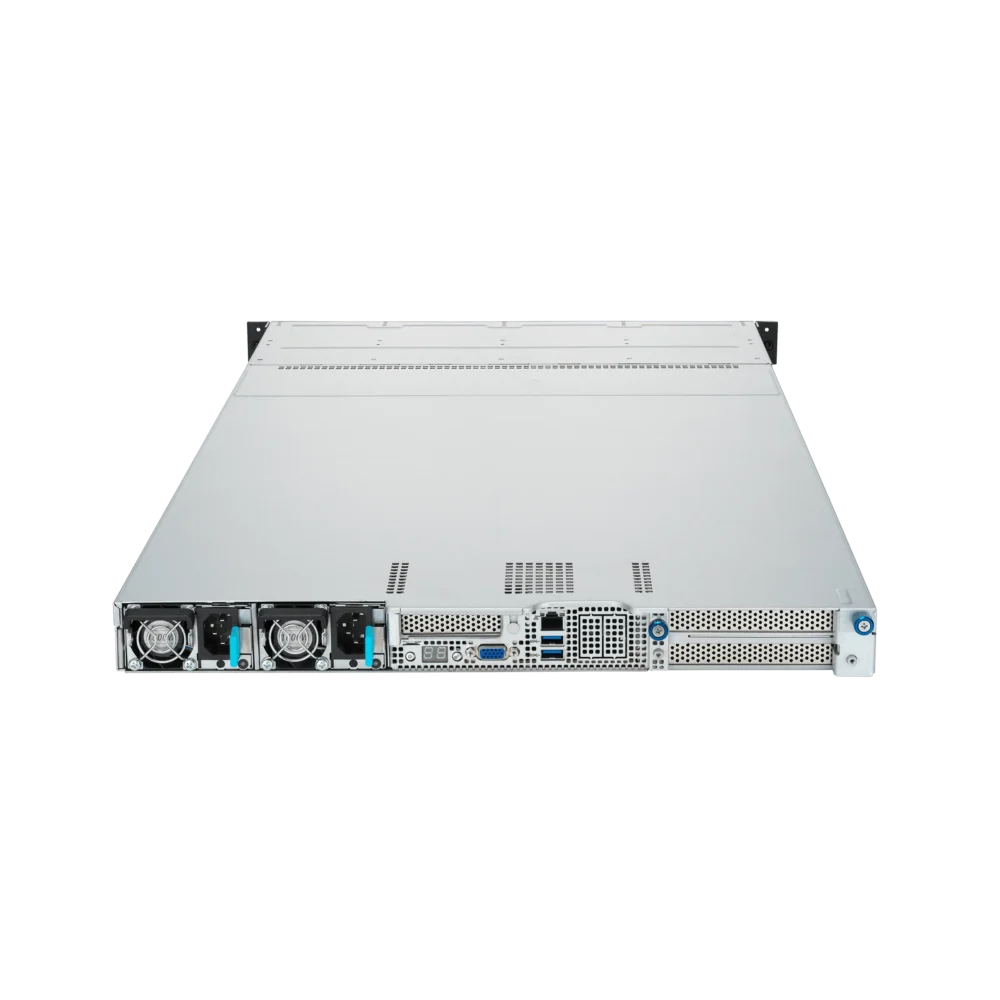

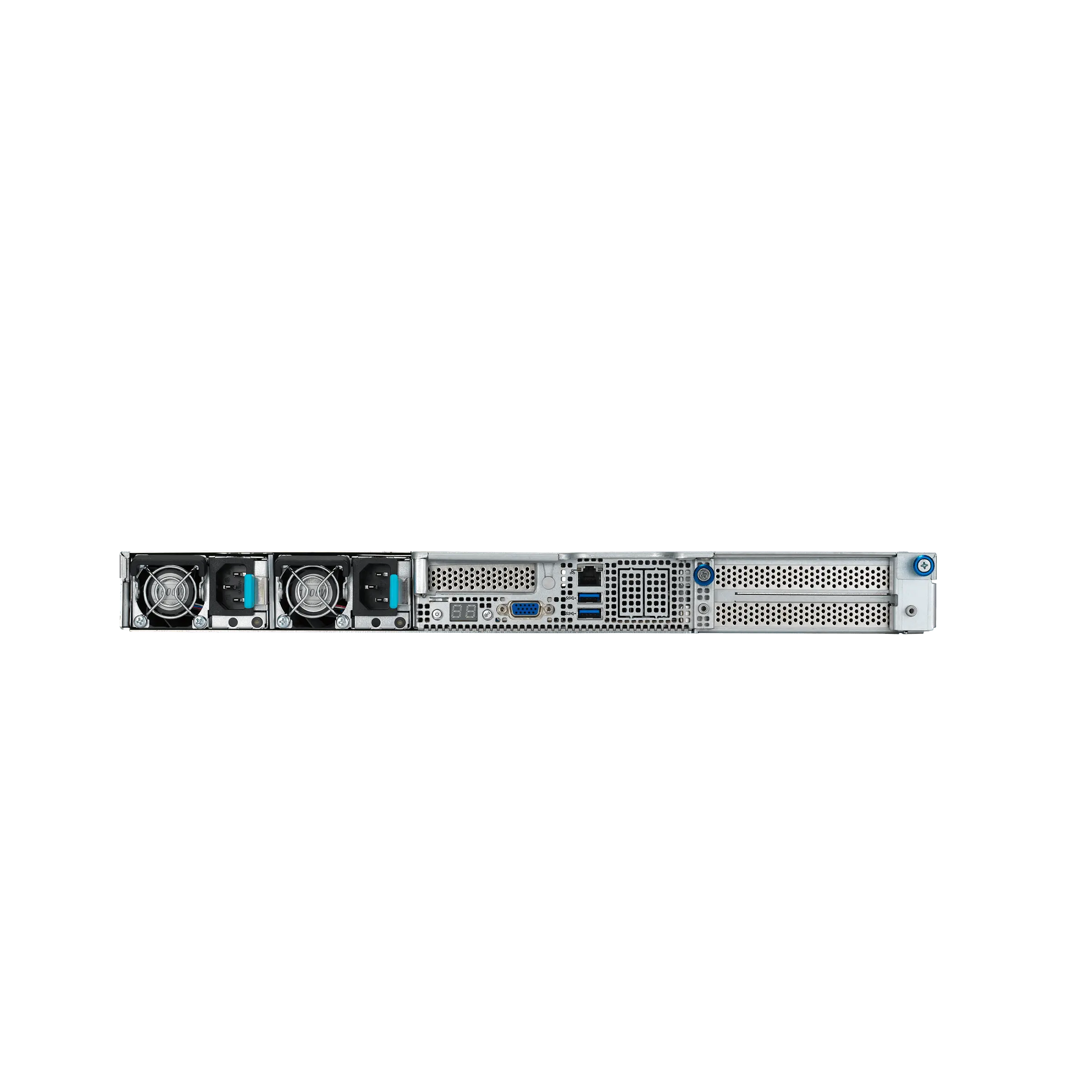

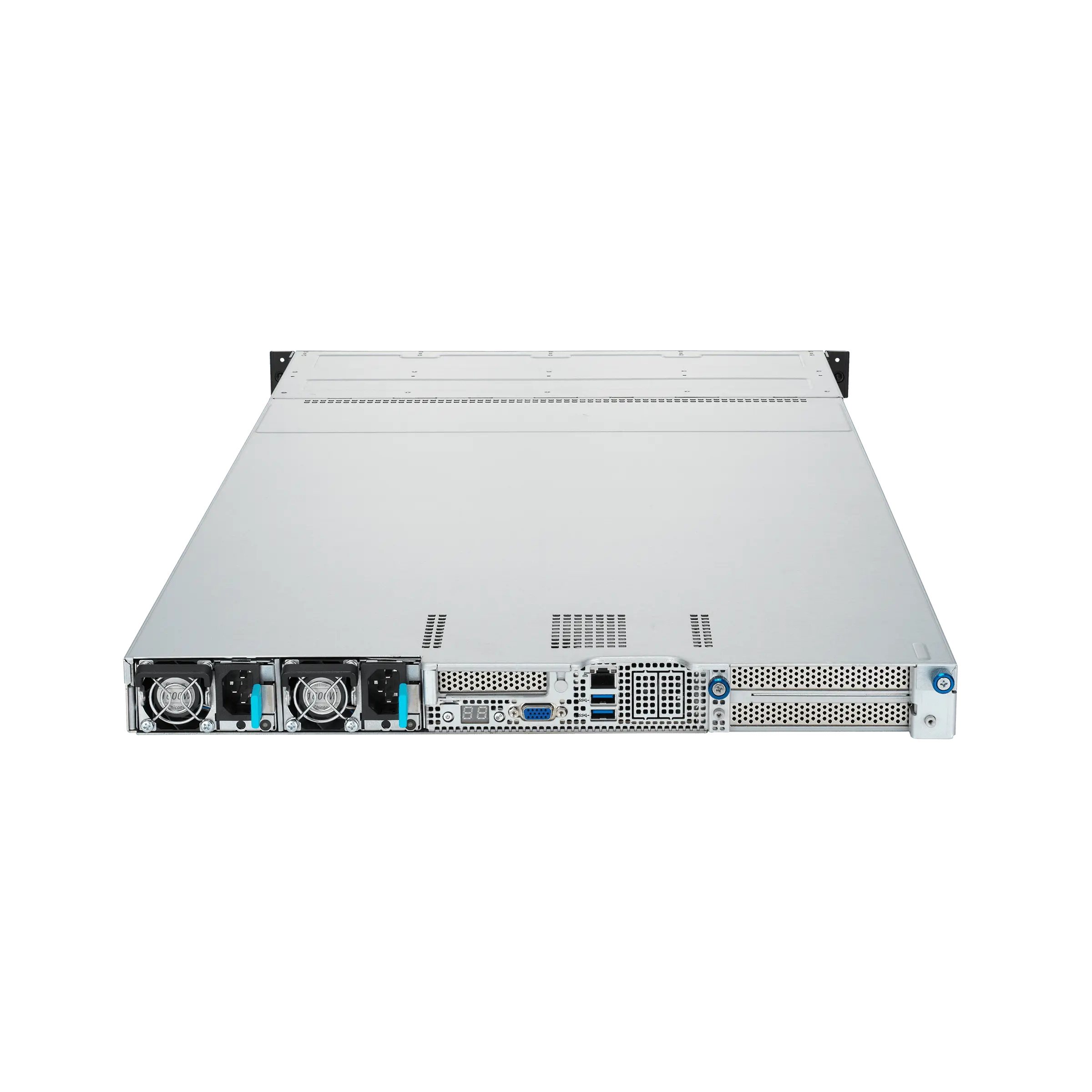

Rear I/O Ports : 2x USB 3.2 Gen 1, 1x VGA

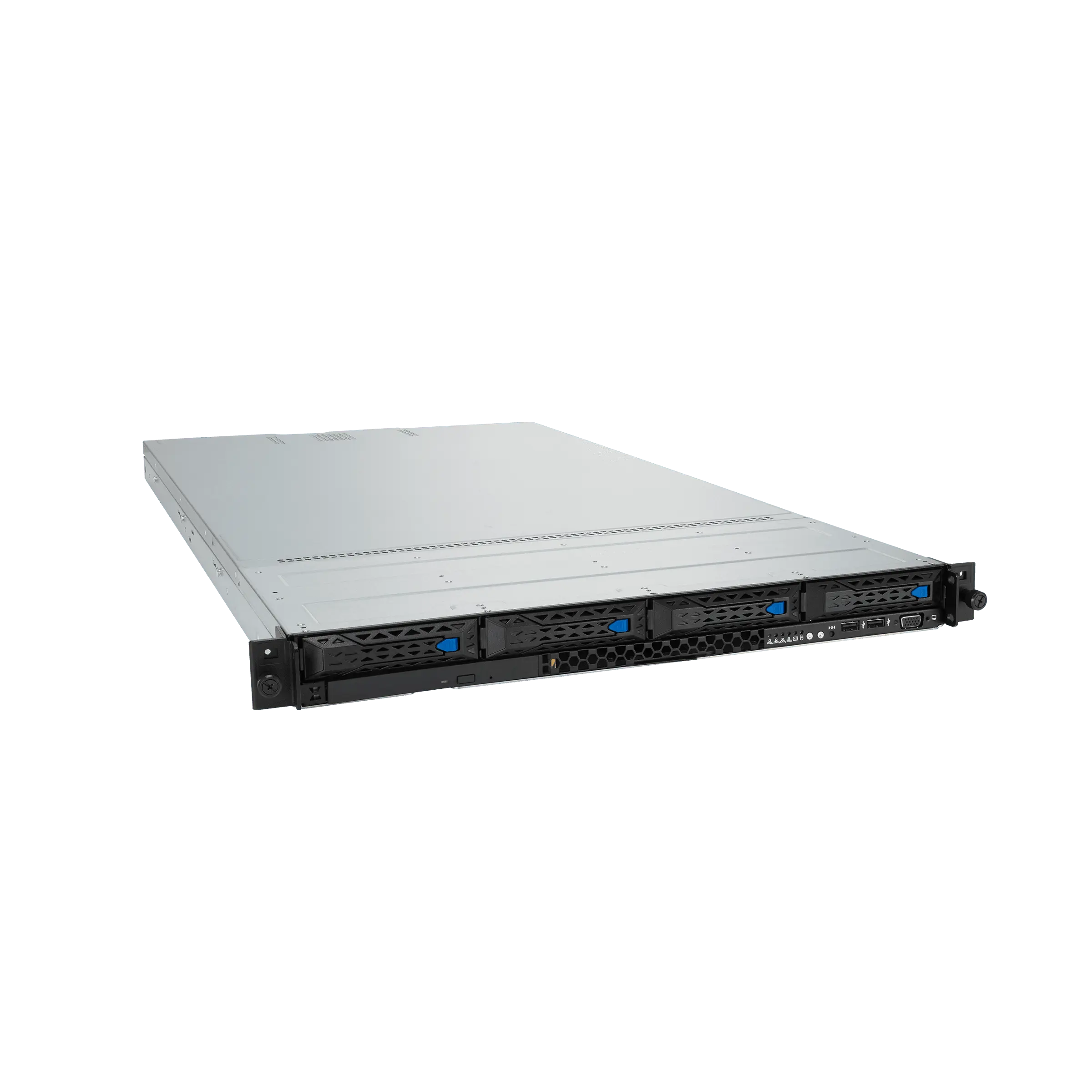

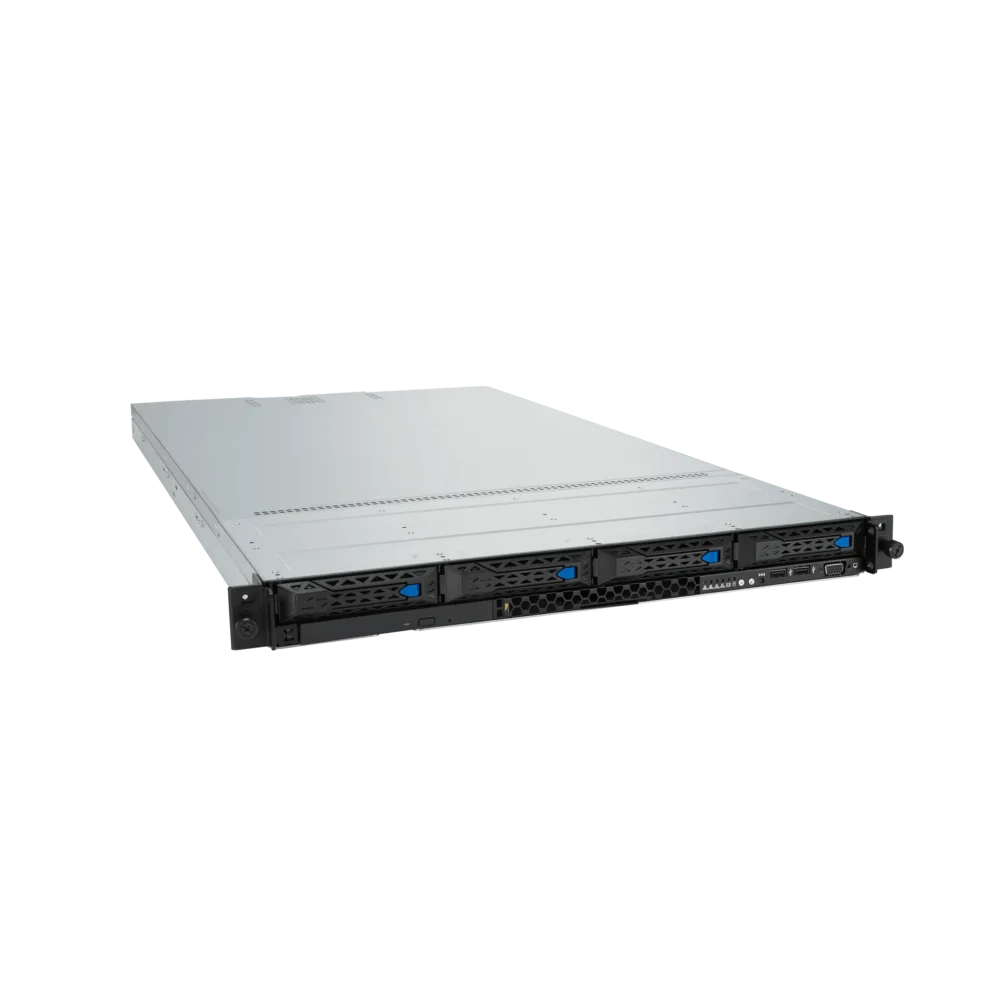

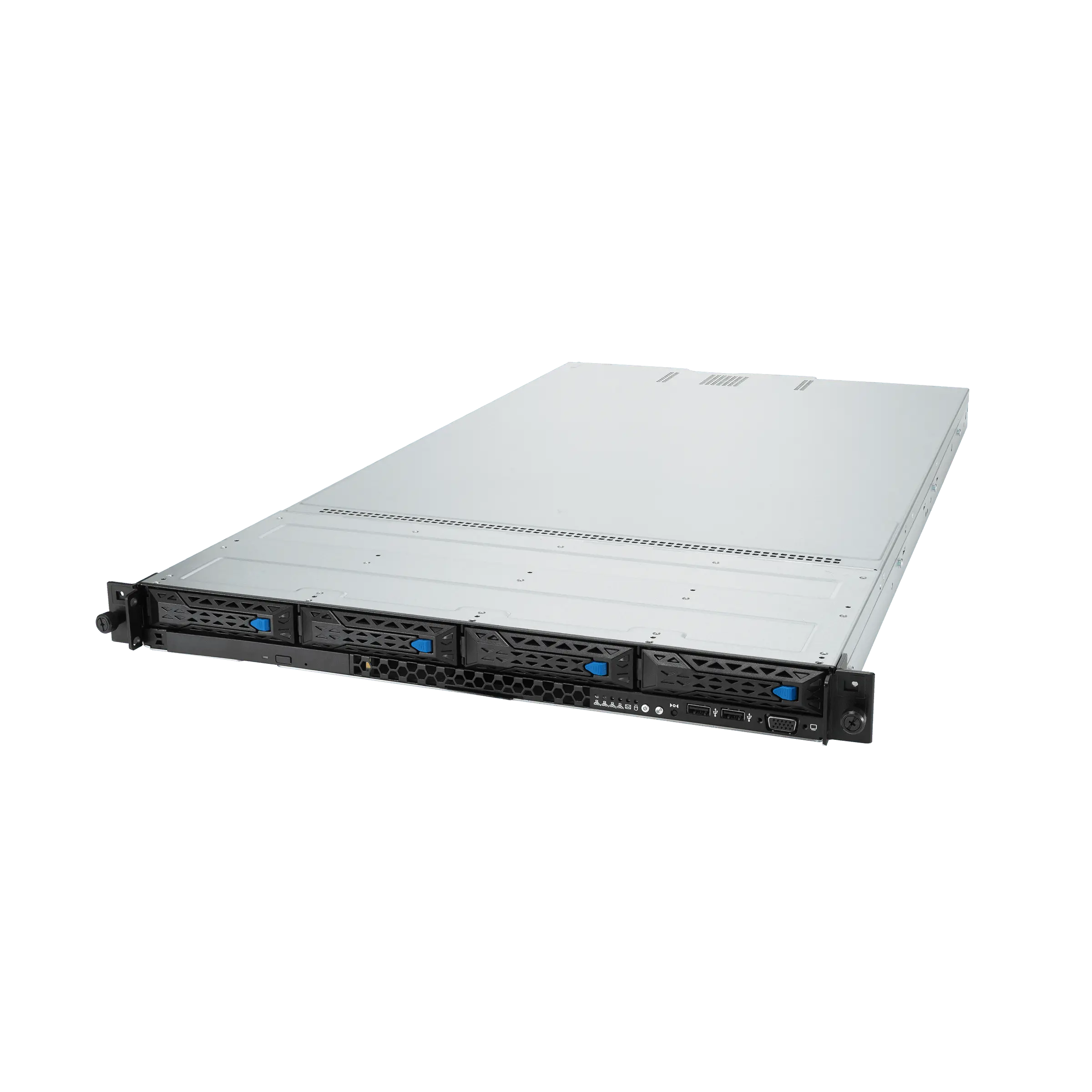

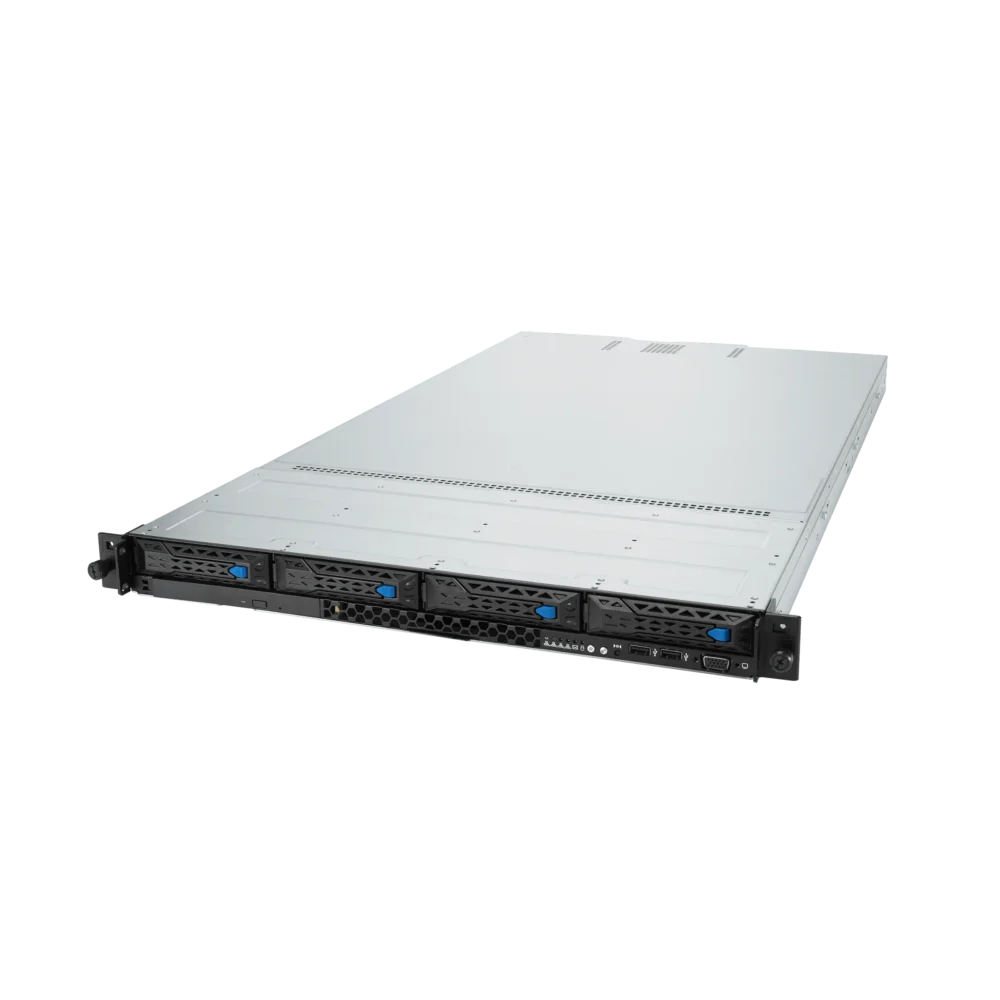

Front I/O Ports : 2x USB 3.2 Gen 1, 1x VGA
Dimensions : 842.5 mm x 449 mm x 44 mm
Power Supply : Redundant (1+1) 800 Watt
