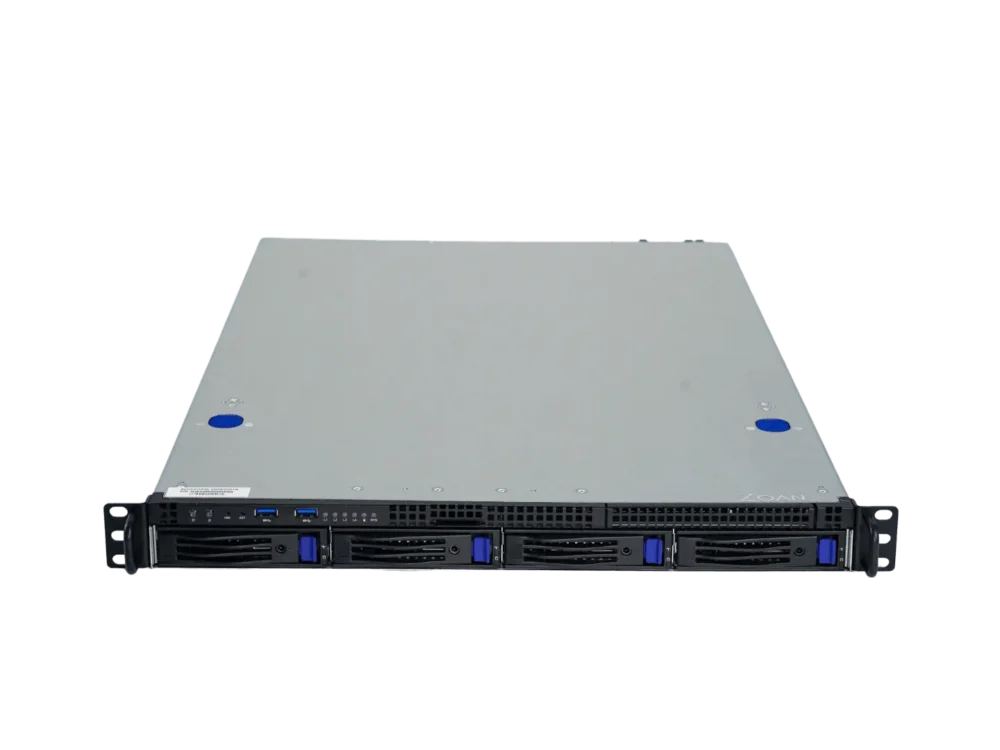

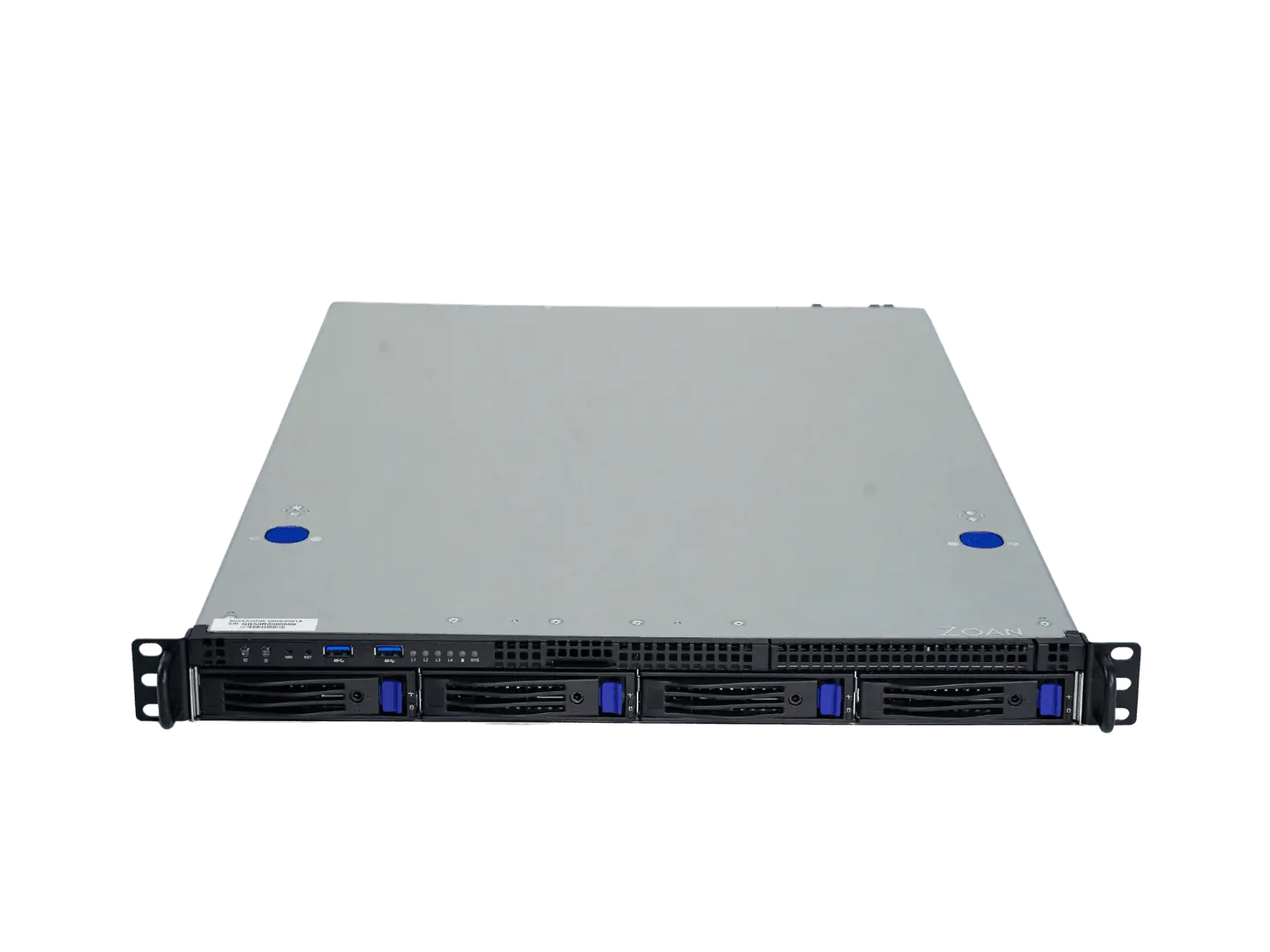

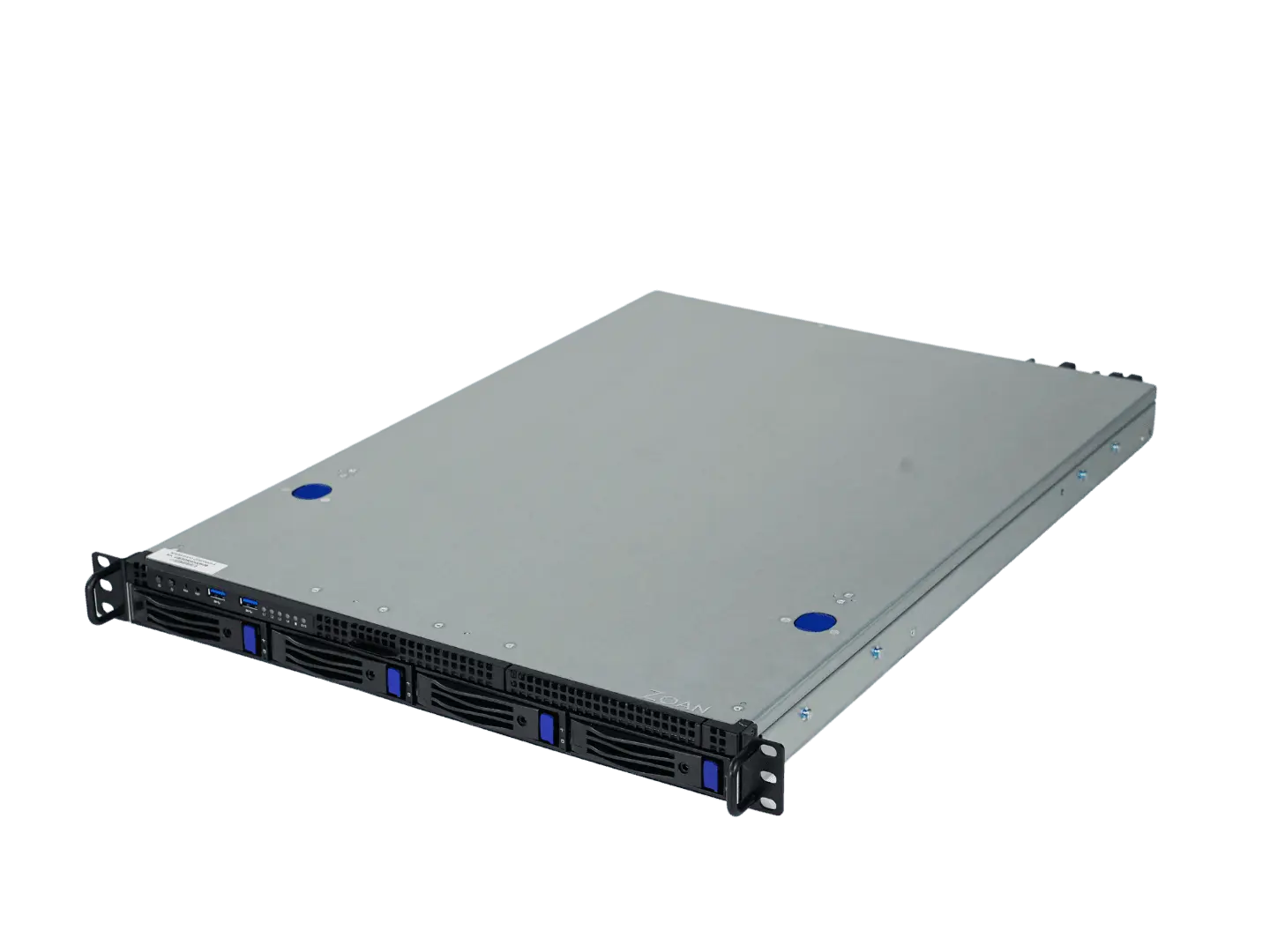

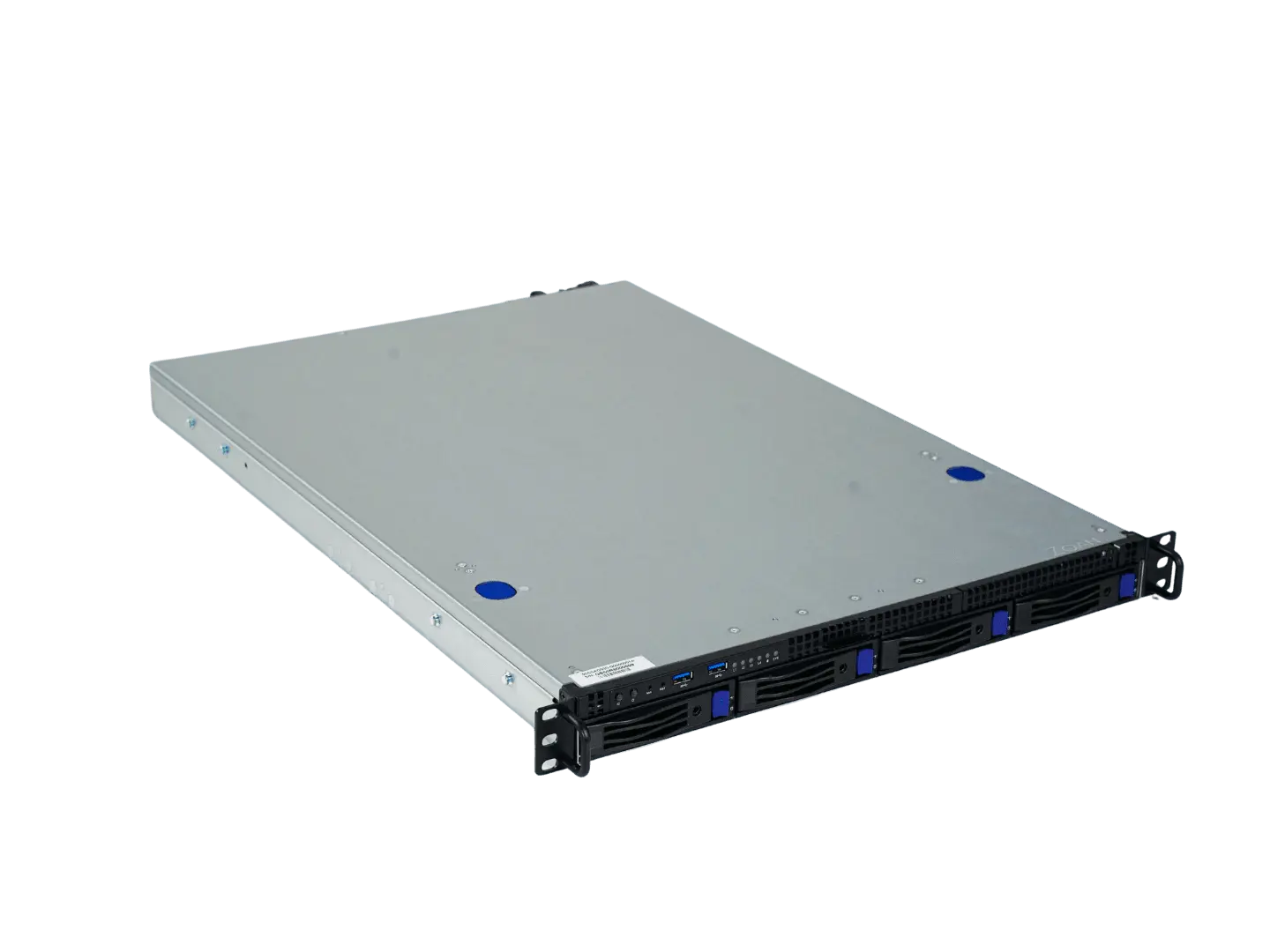

ZOAN ST160-R502-Z2-RS4: Best-in-Class 1U Server Performance
The ZOAN ST160-R502-Z2-RS4 is a 1U server built with 2nd Generation Intel® Xeon® Scalable processors to deliver exceptional performance.
It’s designed to provide a comprehensive IT infrastructure management solution through its IPMI 2.0 remote management module.
With a combination of a versatile storage interface, including hot-swap bays and an internal M.2 slot, this server offers flexibility and optimal performance for a variety of data center needs.
Key Features & Advantages
- Dual Processors: Utilizes dual-socket 2nd Gen Intel Xeon Scalable processors for high-performance computing.

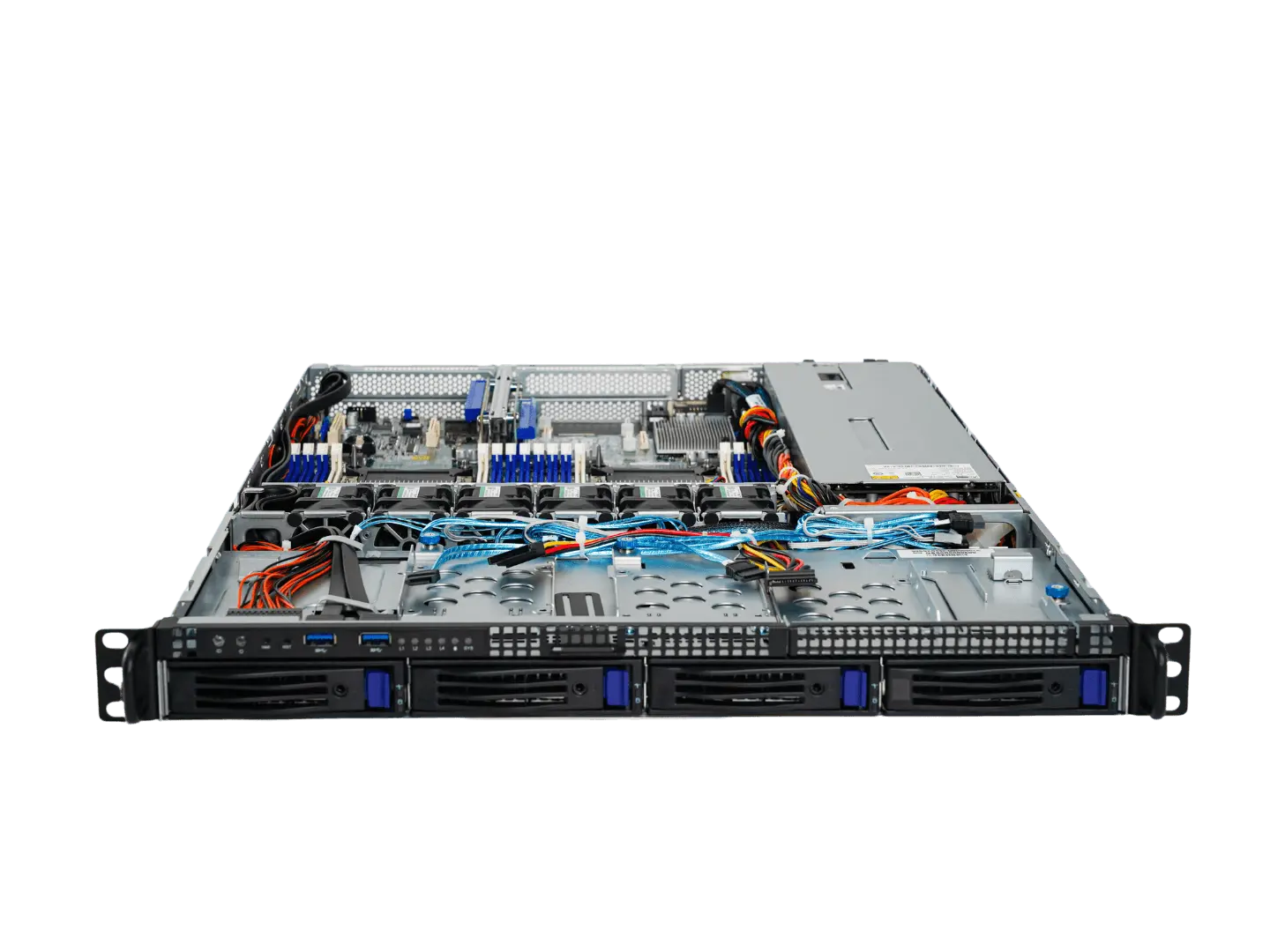

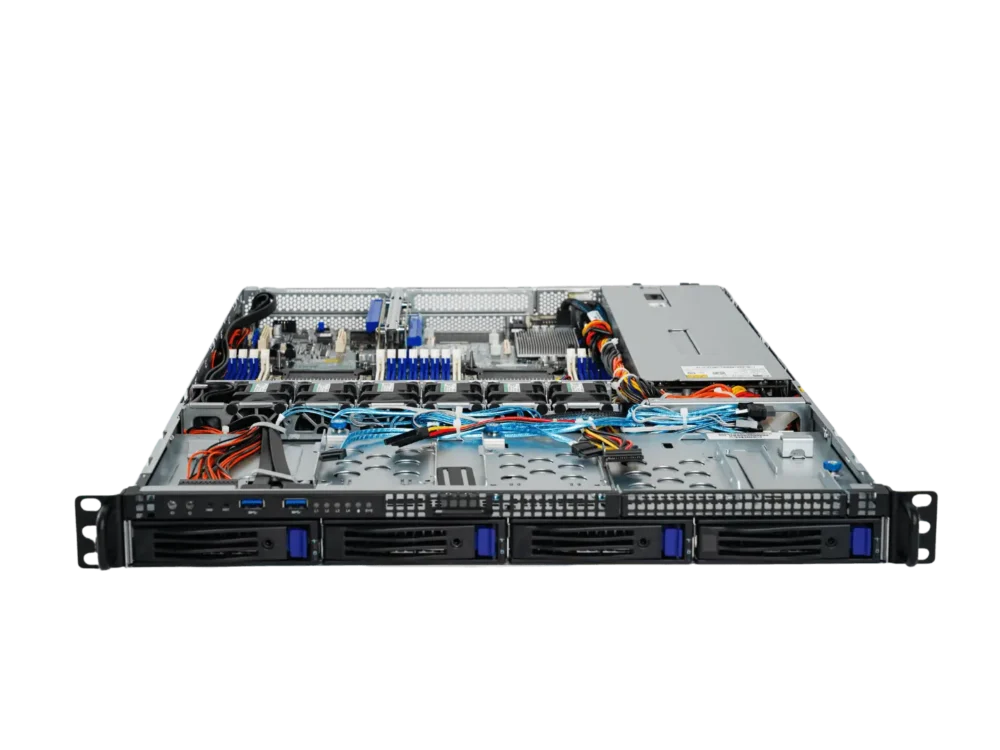

- Optimal Storage: Equipped with 4 hot-swap bays (3.5”/2.5”), 2 internal 2.5” bays, and one M.2 slot for an OS or cache.
- Remote Management: Integrated with an IPMI 2.0 module for remote server management, including BIOS updates, power control, and KVM, even when the server is offline.

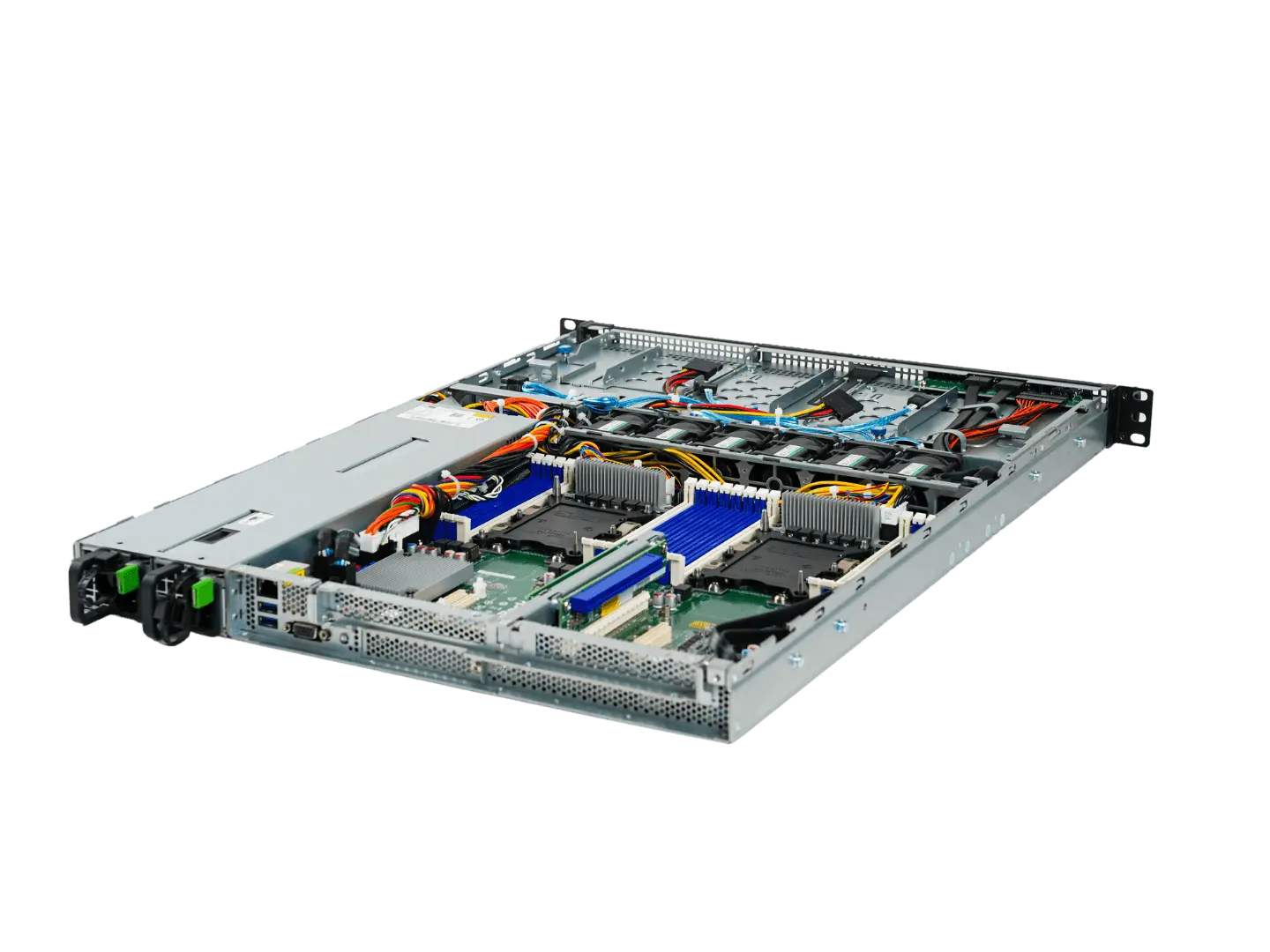

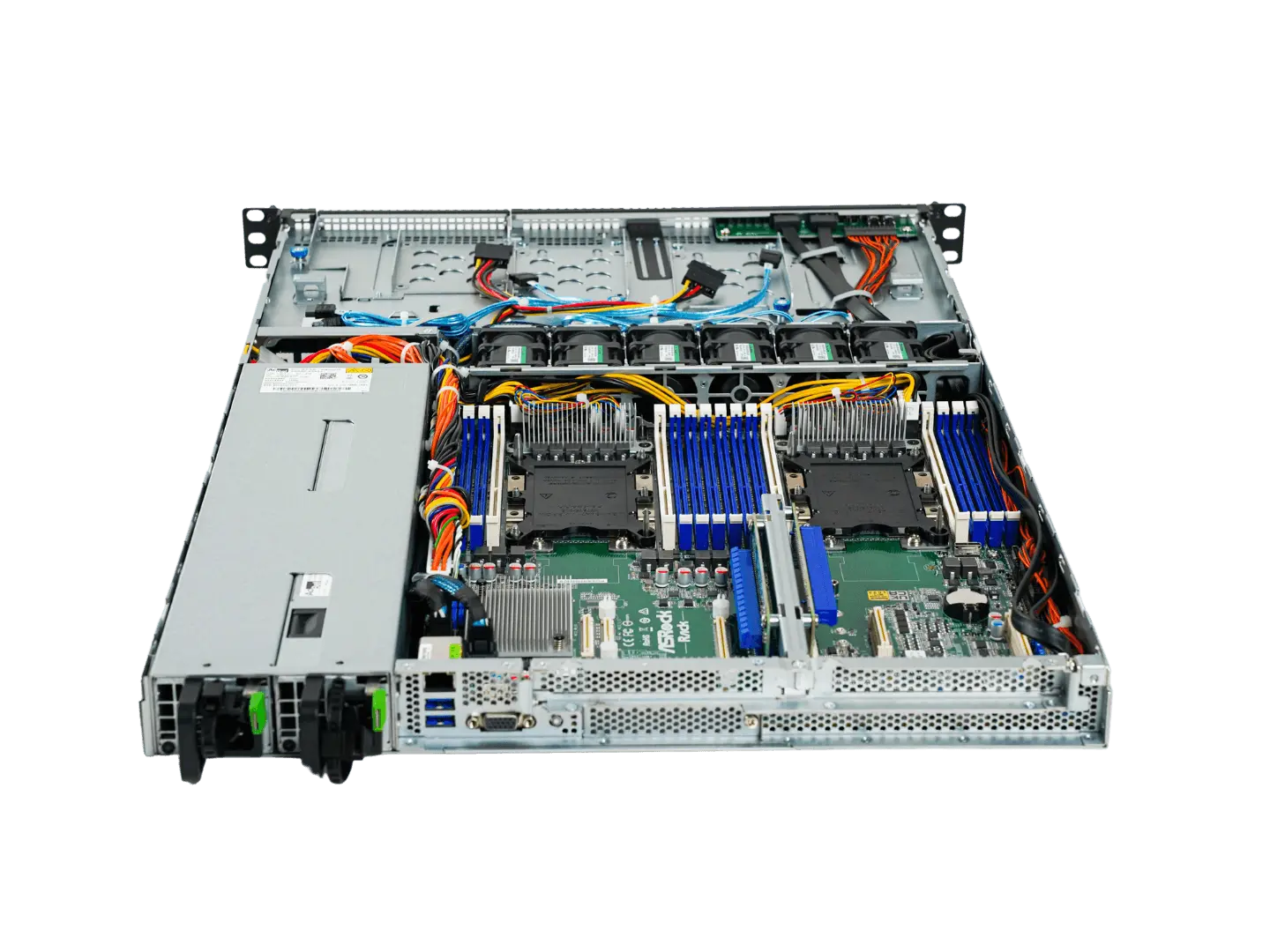

- Generous Memory & Expansion: Provides 16 DIMM memory slots and 3 PCIe slots on the rear for expansion needs.
Specifications
Form Factor : 1U Rackmount
Processor System : Dual Socket P (LGA3647) for 2nd Gen Intel Xeon Scalable
Chipset : Intel C622
Memory : 16 DIMM slots, DDR4 LR/R DIMM type
Drive Bay : 4x Hotswap 3.5″/2.5″ SATA/SAS, 2x Internal 2.5″ SATA, 1x M.2 (PCIe3.0 x4 or SATA)
RAID : Optional RAID controller
Network : 2x Intel 1 GbE Base-T Ports, 1x Dedicated IPMI LAN Port
Graphics : Aspeed AST2500 with 16MB VRAM
Expansion Slots : 2x PCIe 3.0 x16, 1x Mezzanine 2.0

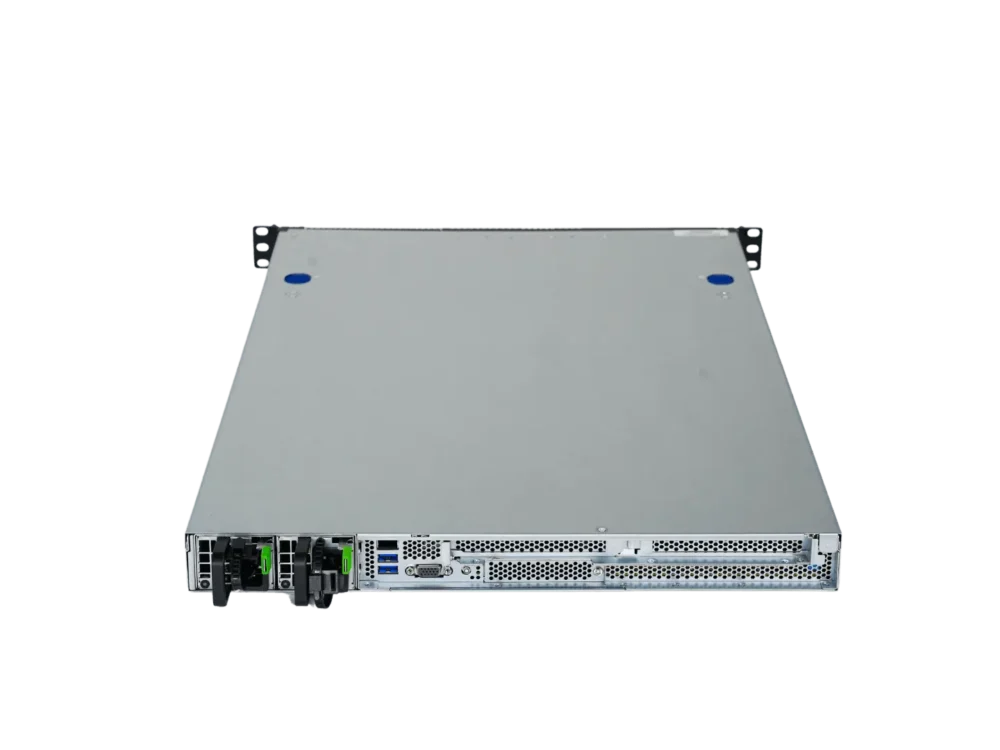

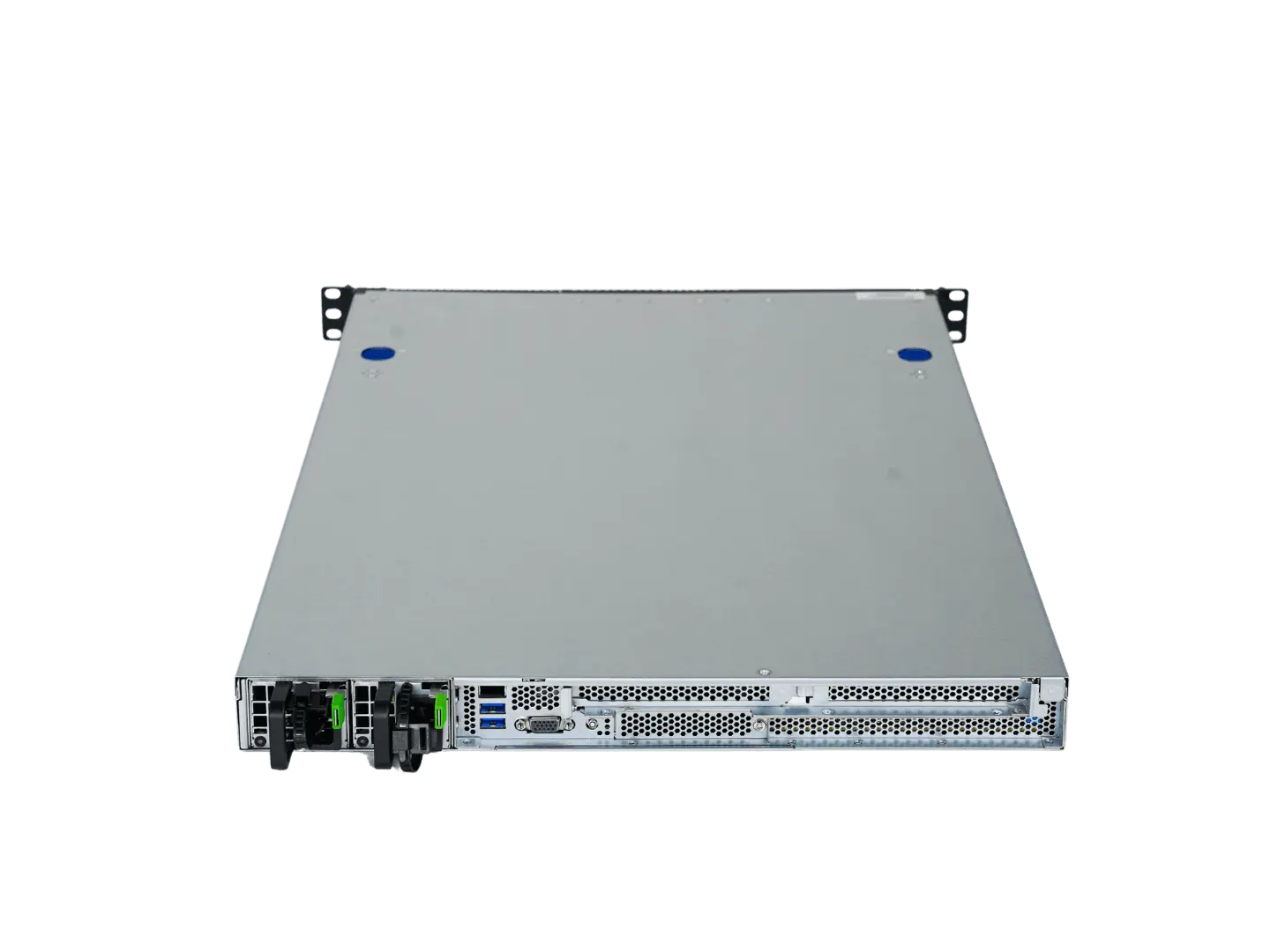

I/O Ports : Rear: 2x USB 3.2 Gen1 Type-A, 1x VGA. Front: 2x USB 3.2 Gen1 Type-A
Dimensions : 625 mm x 430 mm x 43.4 mm
Power Supply : Redundant (1+1) 750 Watt 80+ Platinum
