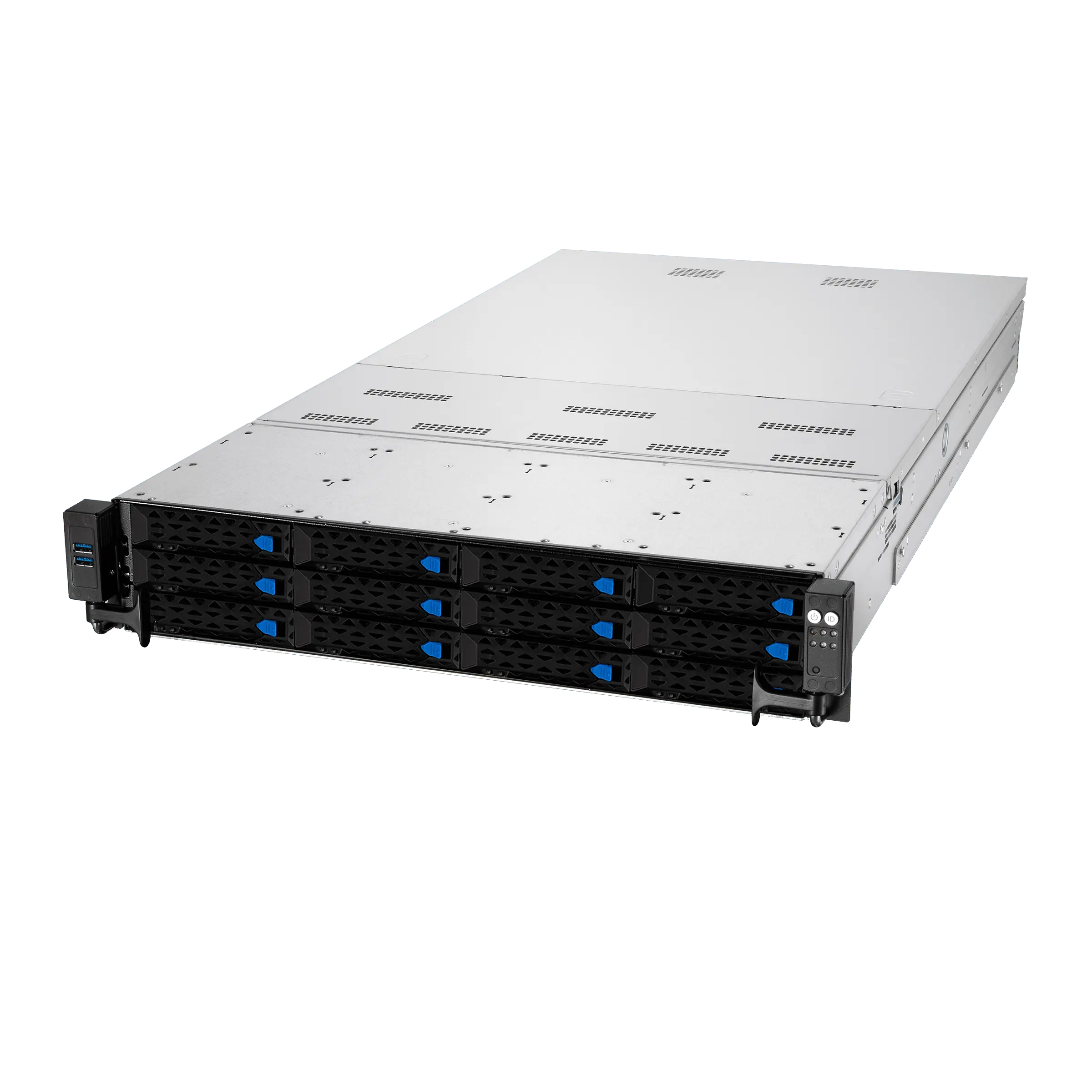

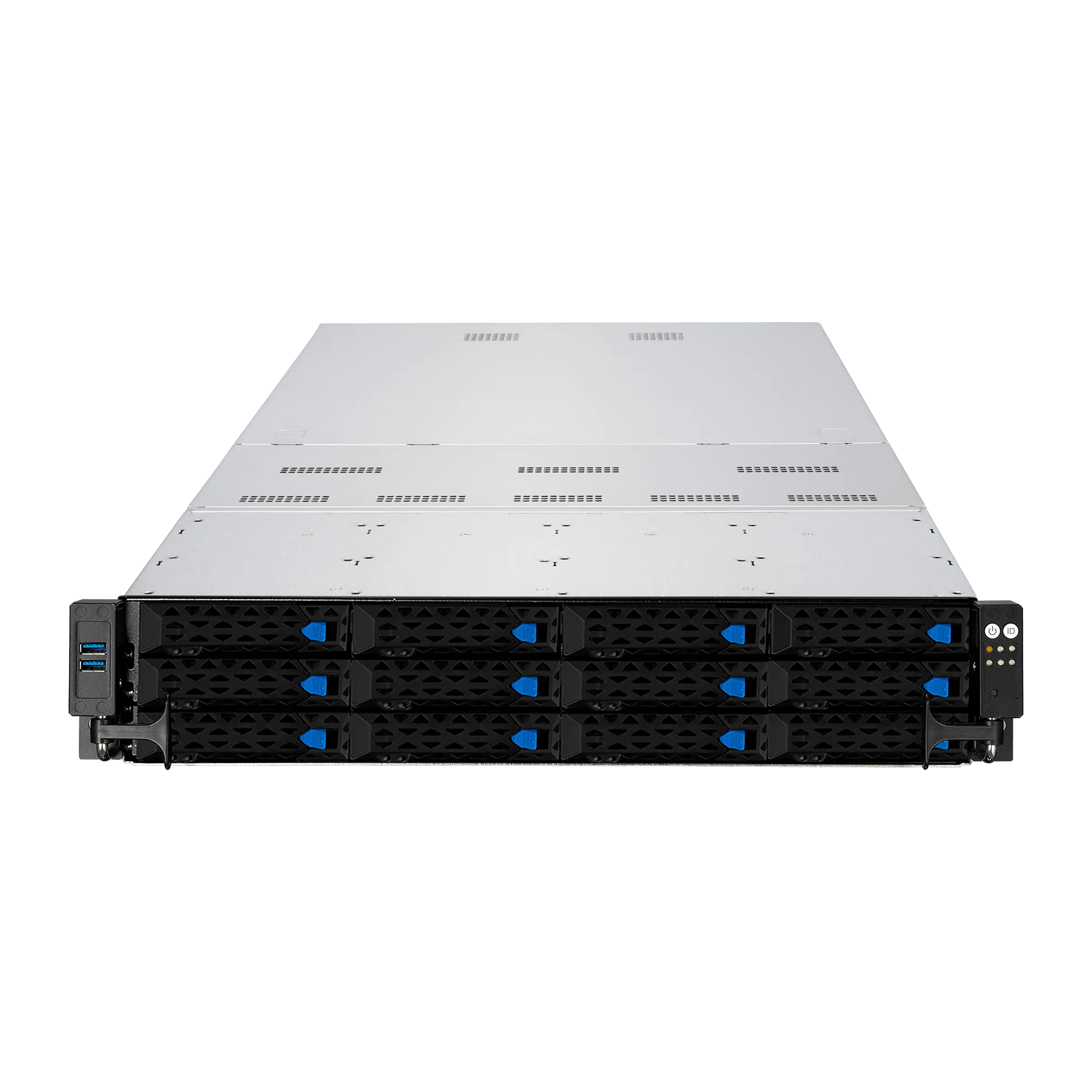

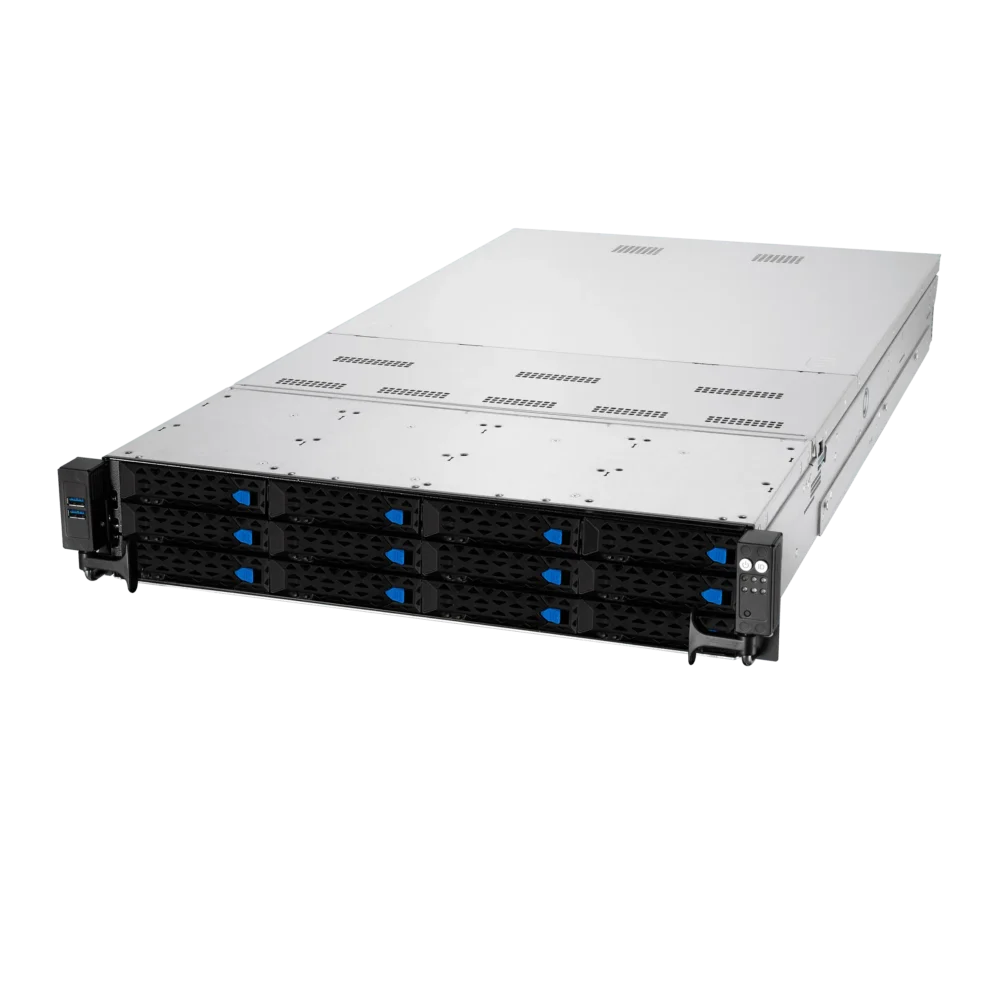

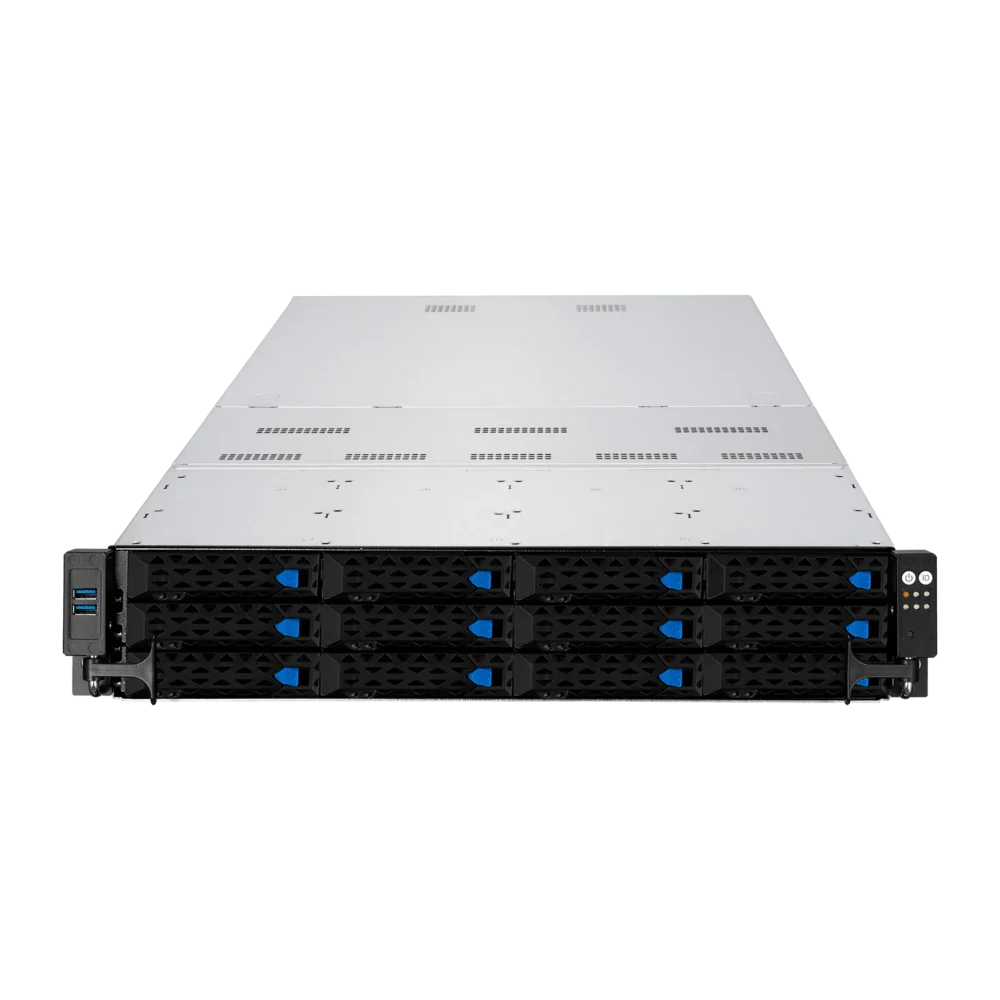

ZOAN R720-Z4-RS12: High-Performance, Scalable 2U Server
The ZOAN SR720-Z4-RS12 is a 2U rackmount server powered by dual 4th Generation Intel® Xeon® Scalable processors to deliver exceptional computing performance.
Designed for scalability, it supports up to 32 DIMM slots, all-flash storage with NVMe support, and nine PCIe Gen 4.0 slots. With a robust architecture capable of accommodating up to four dual-slot GPUs and advanced security features like Platform Firmware Resilience (PFR) and TPM 2.0, this server is ready to meet the demands of AI, high-performance computing (HPC), and secure virtualization workloads.
Key Features & Advantages
- 4th Gen Processors: Powered by dual-socket 4th Gen Intel Xeon Scalable processors with support for up to 270W TDP.
- Robust GPU Support: An architecture capable of accommodating up to four dual-slot GPUs like the NVIDIA A100, ideal for AI and HPC.
- PCIe 4.0 Expansion: Delivers a bandwidth of 16 GT/s (double that of PCIe 3.0) and features up to nine PCIe® 4.0 slots for maximum scalability.
- Massive Memory Capacity: Supports up to 32 DDR4 DIMM slots for very large memory capacity, suitable for heavy workloads.
Specifications
Form Factor : 2U Rackmount
Processor : Dual Socket for 4th Generation Intel® Xeon® Scalable Processors
Chipset : Intel® C621A
Memory : 32 DIMM slots (up to 6TB), DDR4 4800/5600 RDIMM/LR-DIMM/LR-DIMM 3DS

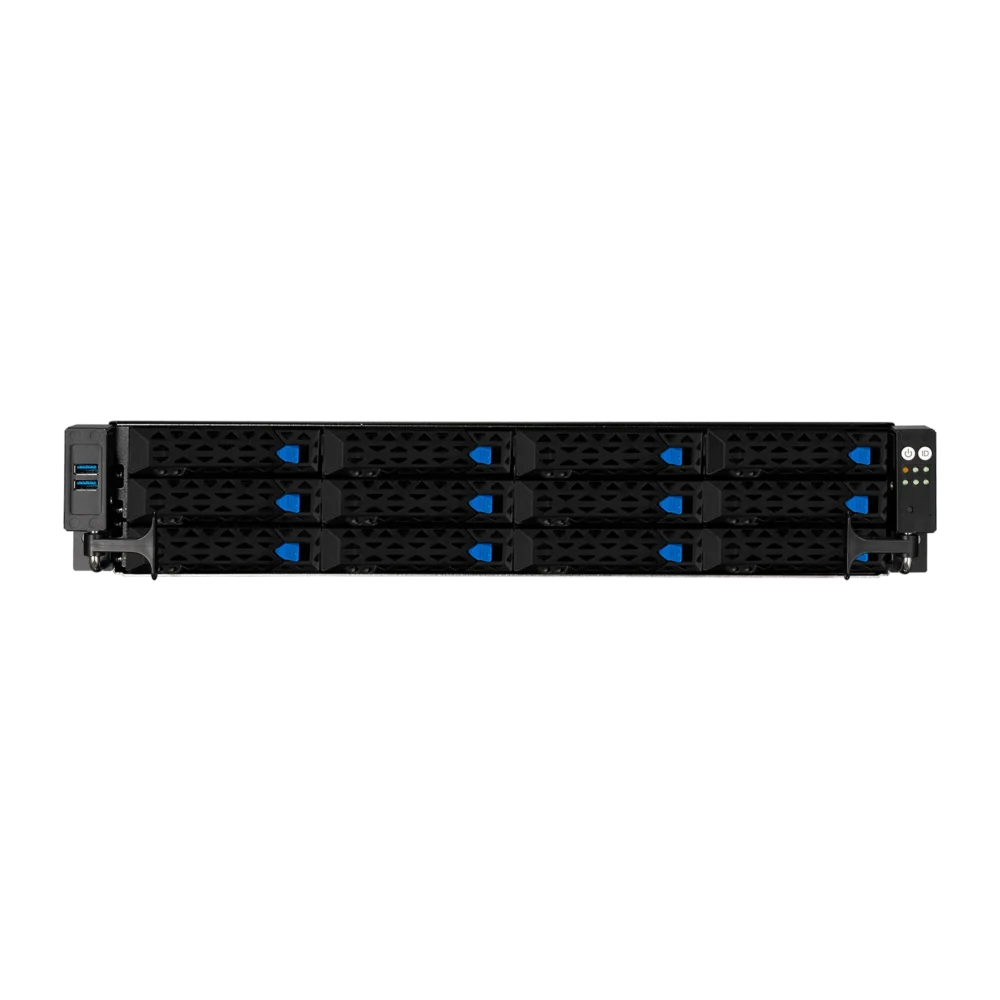

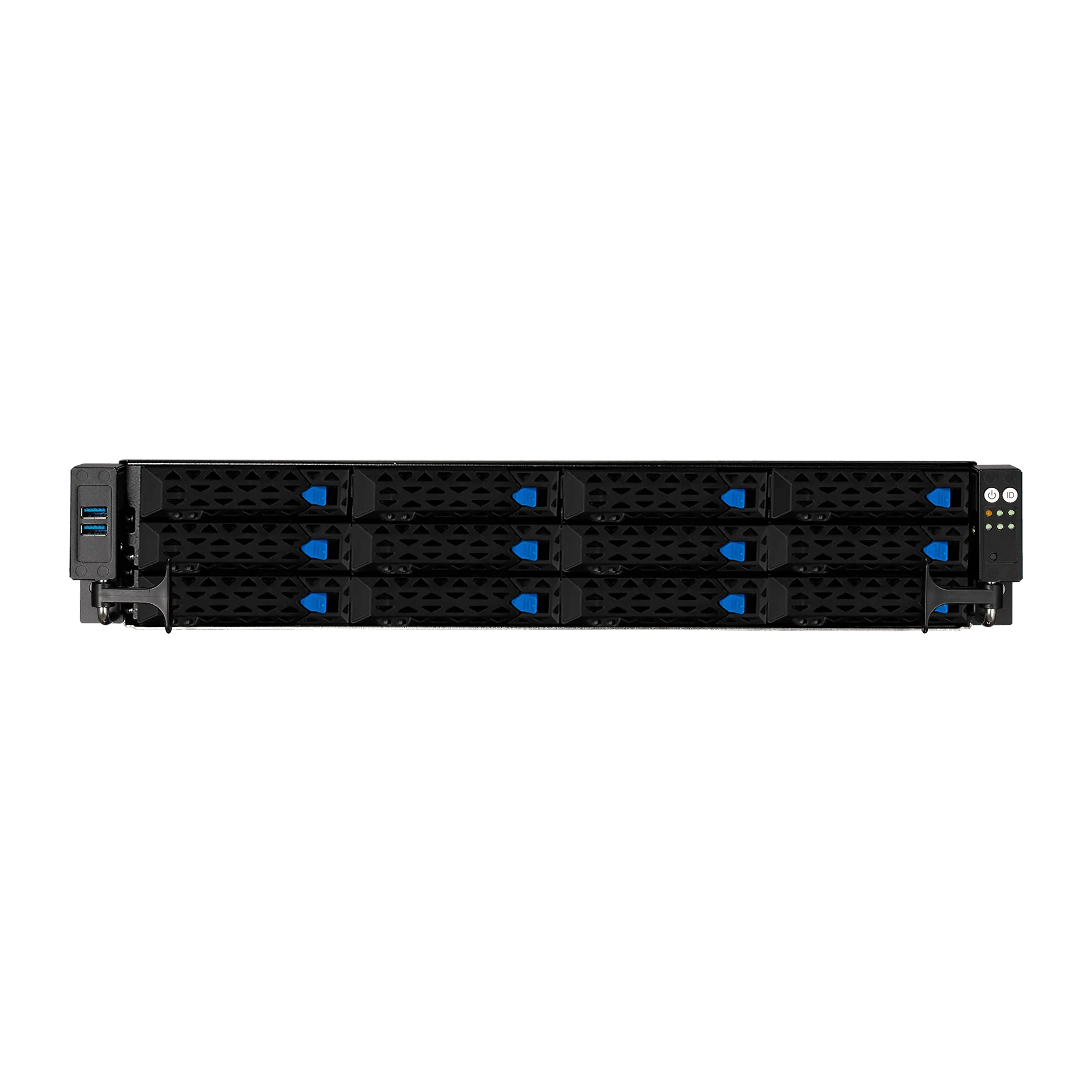

Front Drive Bay : 12 x 3.5″ or 2.5″ hot-swap bays (8x NVMe/SATA/SAS + 4x SATA/SAS)
M.2 Slot : 2 x M.2 connectors (NGFF 2280/2260), supporting PCIe Gen4x4
RAID Controller : Intel® RSTe & VROC (RAID 0, 1, 10, 5), Optional 12Gb/s SAS controller
Network : Optional: Quad-Port 1G LAN or Dual-Port 10G LAN
Management : Dedicated IPMI LAN port with KVM-over-IP
Graphics : Aspeed AST2600 with 64MB VRAM
Expansion Slots : 9 slots (supports various PCIe 4.0 x16/x8 and OCP 3.0 configurations)

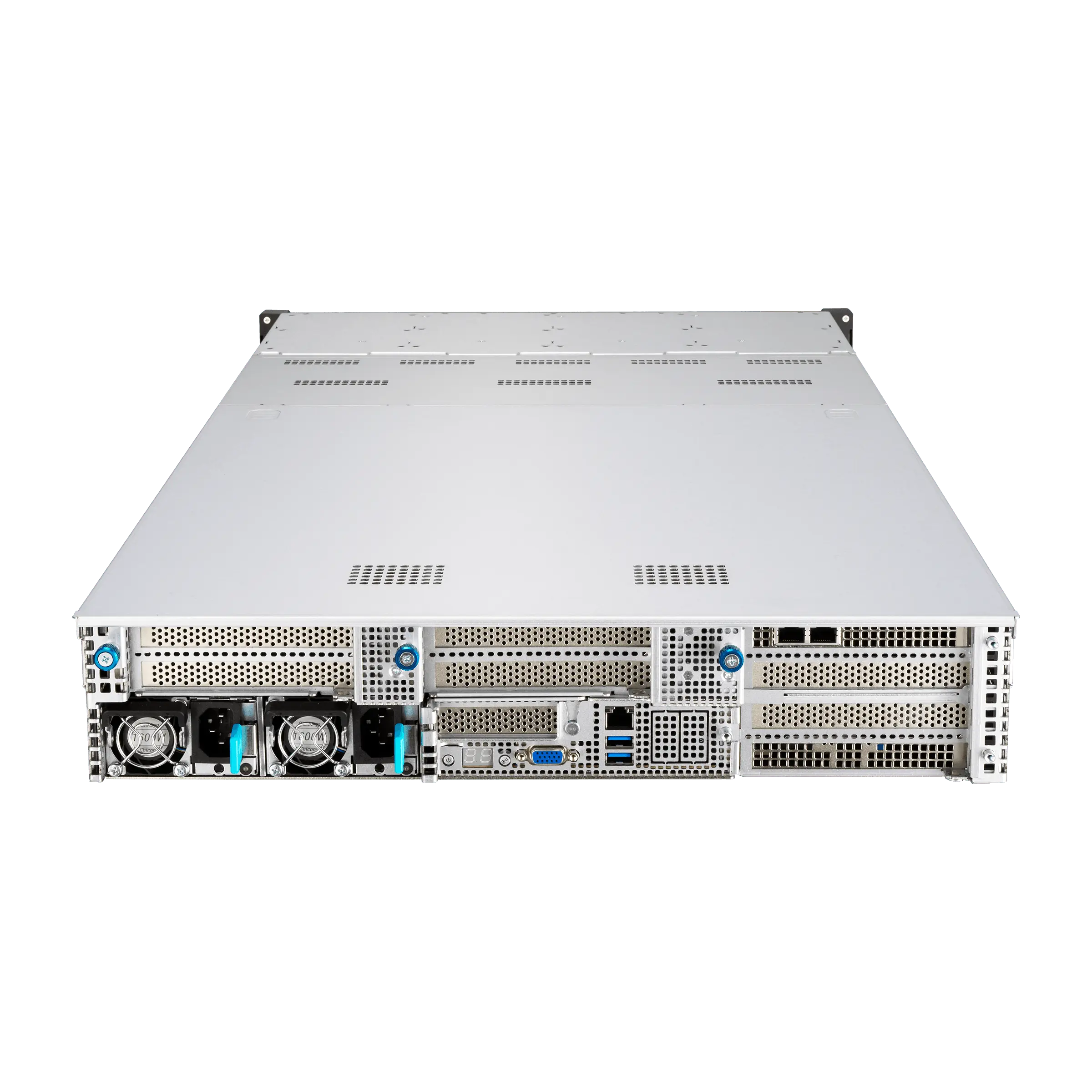

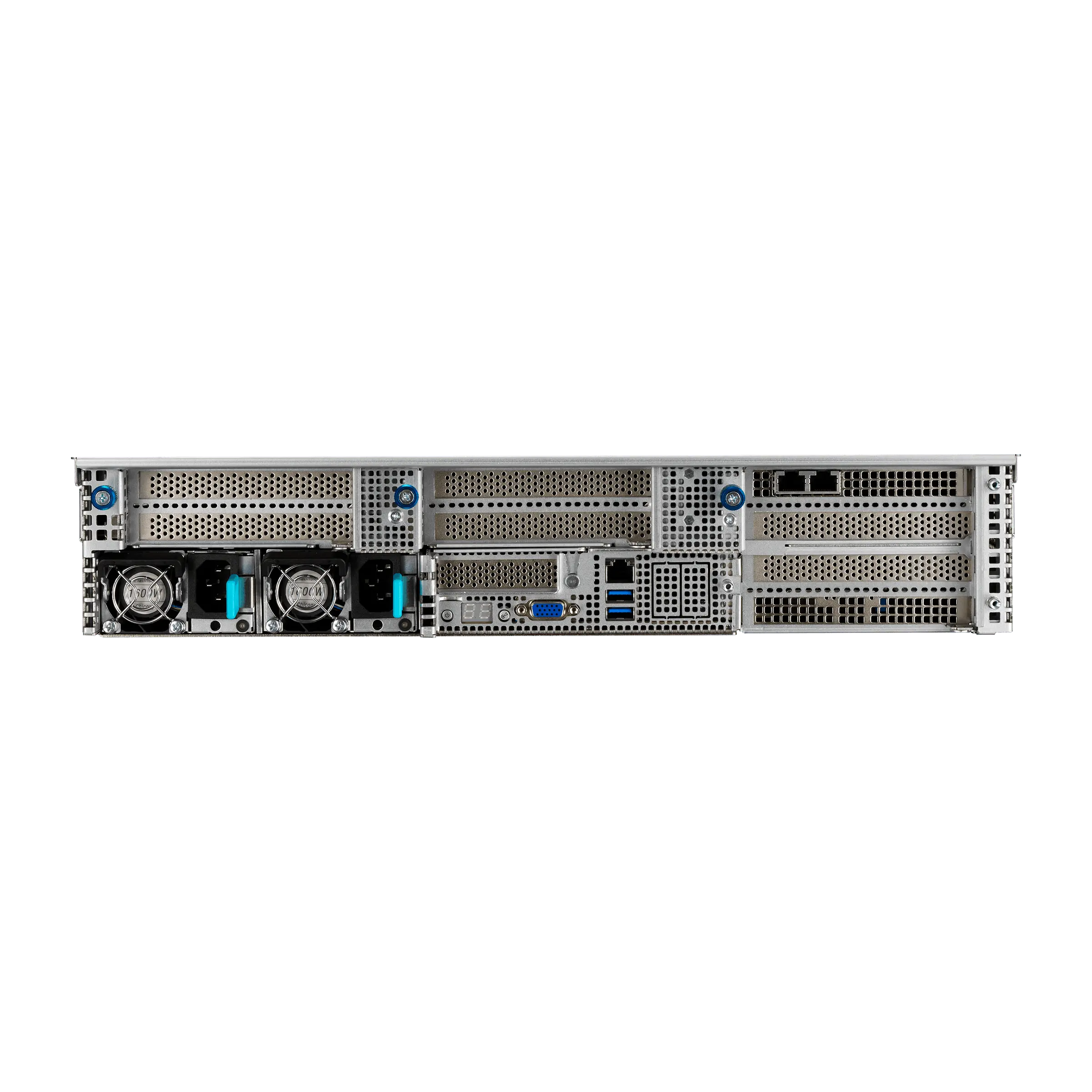

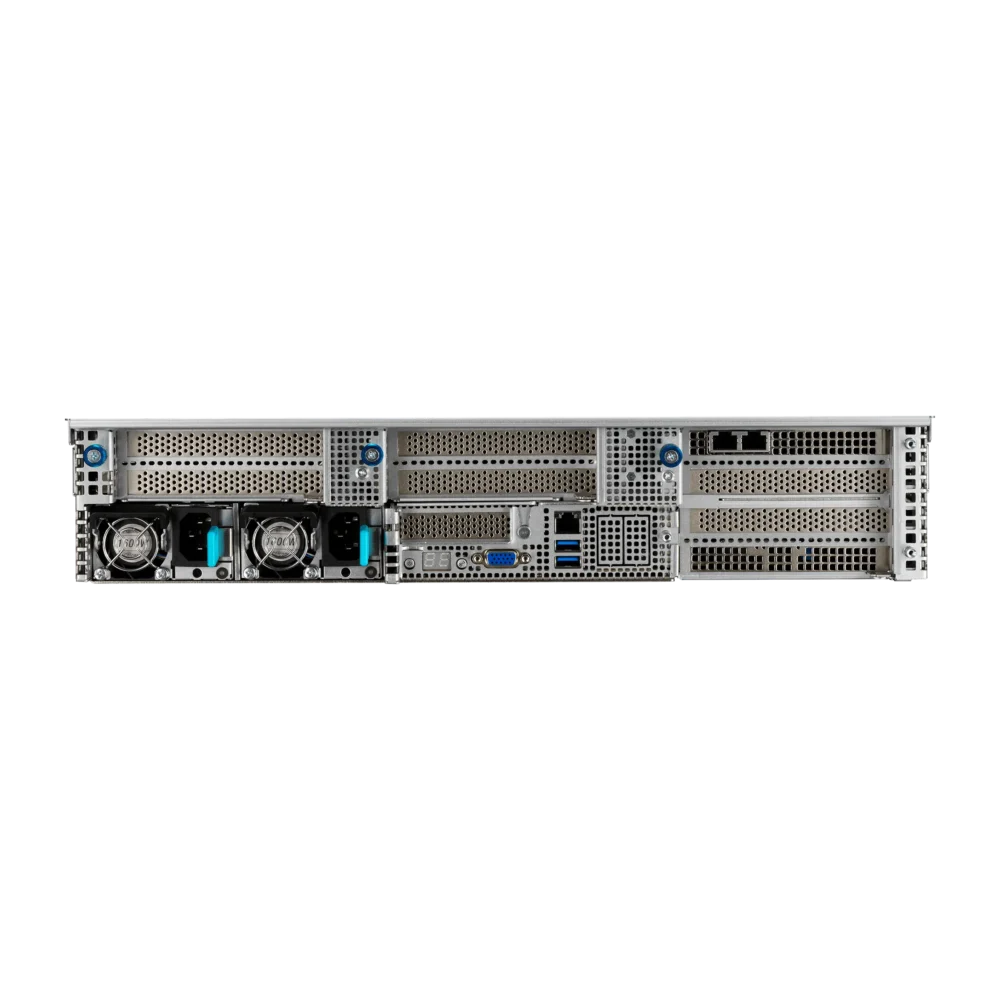

Rear I/O Ports : 2x USB 3.2 Gen1, 1x VGA, 1x RJ-45 Mgmt LAN, 4/2x NIC Ports (optional)
Front I/O Ports : 2x USB 3.2 Gen 1
Dimensions : 840mm x 449mm x 88.1mm
Power Supply : 1+1 Redundant, choice of 1600W Platinum or 2400W Titanium
